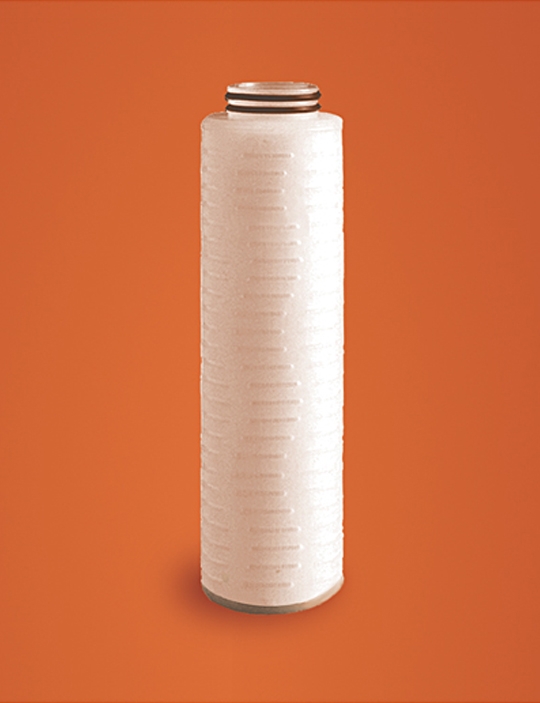

Fluorogard® FP and FP-HP Cartridge Filters
PTFE membrane filter for flat panel display manufacturing applications
● Hydrophillc and Hydrophobic membranes available
● Durable PTFE Membrane
● Polypropylene (PP) construction
● No prewetting required
檔案下載：
規格說明：
Fluorogard® FP Cartridge Filter
Fluorogard® FP-HP Cartridge Filter
PTFE membrane filter for flat panel display manufacturing applications
● Hydrophillc and Hydrophobic membranes available
● Durable PTFE Membrane
● Polypropylene (PP) construction
● No prewetting required
檔案下載：
規格說明：
Fluorogard® FP Cartridge Filter
| Materials: |
Membrane: Hydrophobic PTFE Supports: Supports, core, sleeve and end caps, Polypropylene fluoropolymer encapsulated Viton® fluoroelastomer (TEV) |
| Connections: |
Code 0, 2-222 O-rings Code 7, 2-226 O-rings Code F |
| Membrane area: |
10" 7,000 cm2 (7.54 ft2) 20" 14,000 cm2 (15.1 ft2) 30" 21,000 cm2 (22.6 ft2) |
| Maximum operating conditions: |
Maximum forward/reverse differential pressure: 0.34 MPa (3.4 bar, 50 PSID) @ 25°C Maximum operating temperature: 90°C (194°F) |
Fluorogard® FP-HP Cartridge Filter
| Materials: |
Membrane: Hydrophilic PTFE Supports, core, sleeve and end caps: Polypropylene O-rings: Viton®, EPR and Teflon® fluoropolymer encapsulated Viton® fluoroelastomer (TEV) |
| Connections: |
Code 0 (2-222) |
| Membrane area: |
10”: 7000 cm2 (7.54 ft2) 20”: 14000 cm2 (15.1 ft2) 30”: 21000 cm2 (22.6 ft2) |
| Maximum operating conditions: |
Maximum forward/reverse differential pressure: 0.34 MPa (3.4 bar, 50 PSID) at 25°C Maximum operating temperature: 90°C (194°F) |
