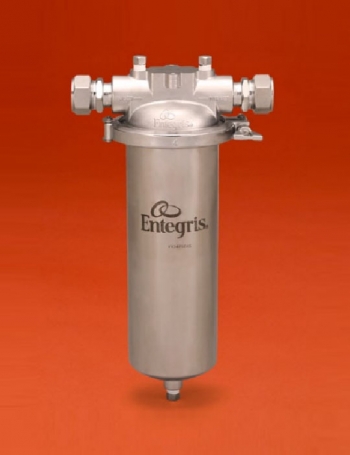

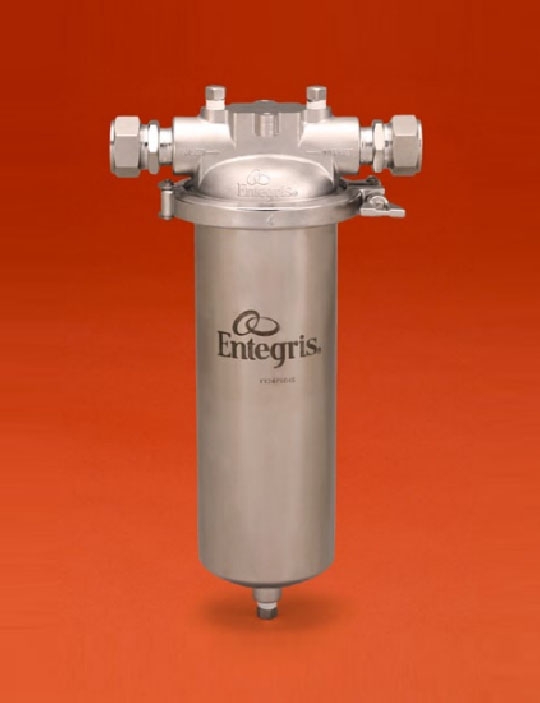

Processgard® PL Half Dove Tail Housings

Processgard® PL Half Dove Tail Housings

Stainless steel housings for gases, DI water and organic solvents

● Designed for high-flow central applications as well as low-flow point-of-use applications
● Constructed of high-quality 316L stainless steel for good resistance to corrosive chemicals
● Upgraded o-ring groove design protects the o-ring from being separated from the housing during filter changeout
● Easy cartridge replacement with the screw-in clamp band feature
● Versatile installation - Code 0 and F in 5, 10, 20 and 30" lengths

檔案下載 :



規格說明 :

Materials:

Head: Equivalent 316L stainless steel (SS)
Bowl, drain, vent, plug: 316L stainless steel (SS)
2-piece clamp: Equivalent 304 stainles steel (SS)
Cartridge suppressing spring: 316 stainless steel (SS)
O-ring: EPDM G-105

Finish:

Head (internal and external): Internal and external electrolyte polishing (casting surface only; o-ring parts are machined)
Bowl (internal): Electropolished after #400 buffering
Bowl (external): #400 buffering

Connections:

Vent/drain: 1/4" NPT, PT
Inlte/outlet: 3/8", 1/2", 3/4", 1" NPT or PT or 1" Swagelock®

Dimensions

Length: 5", 10", 20", 30"
Diameter: 101.6 mm (4")

Maximum operating pressure:

0.98 MPa (142 PSID) @ 90ºC
