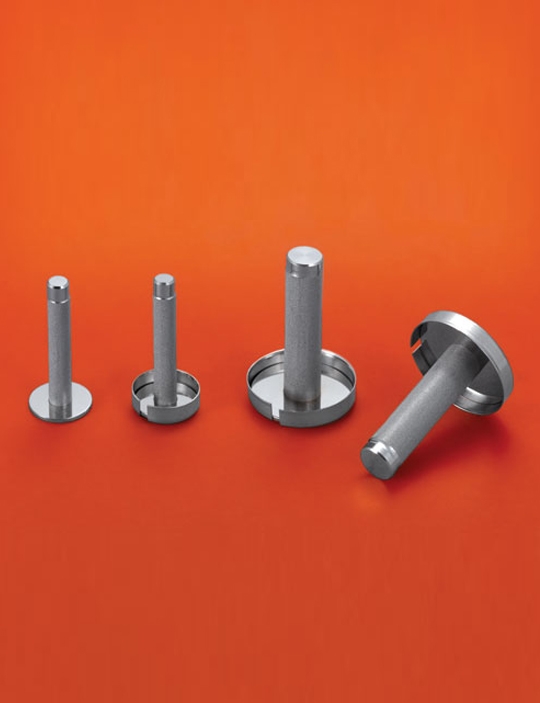

Gasketgard® In-Line Gasket Filters
VCR® gasket replacement protects sensitive gas components
● Compact, all-metal filter that fits in place of standard 1⁄4" VCR® gaskets
● Protects critical components from particle damage
● Ideal for high-pressure and high-temperature applications
● An economical safeguard against contamination
檔案下載：
規格說明：
VCR® gasket replacement protects sensitive gas components
● Compact, all-metal filter that fits in place of standard 1⁄4" VCR® gaskets
● Protects critical components from particle damage
● Ideal for high-pressure and high-temperature applications
● An economical safeguard against contamination
檔案下載：
規格說明：
| Materials: |
Filter and gasket: Sintered 316L stainless steel filter media welded to 316L stainless gasket Retainer: 316L stainless steel |
| Particle retention: |
Greater than 90% removal of all particles larger than 1.0 μm diameter at flow rates up to 30 SLPM |
| Operating conditions: |
Maximum differential pressure: P1 (face through filter): 9.4 MPa (94 bar, 1350 PSID) P2 (filter through face): 6.7 MPa (67 bar, 960 PSID) Maximum operating temperature: 400°C (752°F) [inert gas] Rated flow: 30 SLPM P1 P2 |
| Dimensions: |
Length: 25.25 mm (1") |
