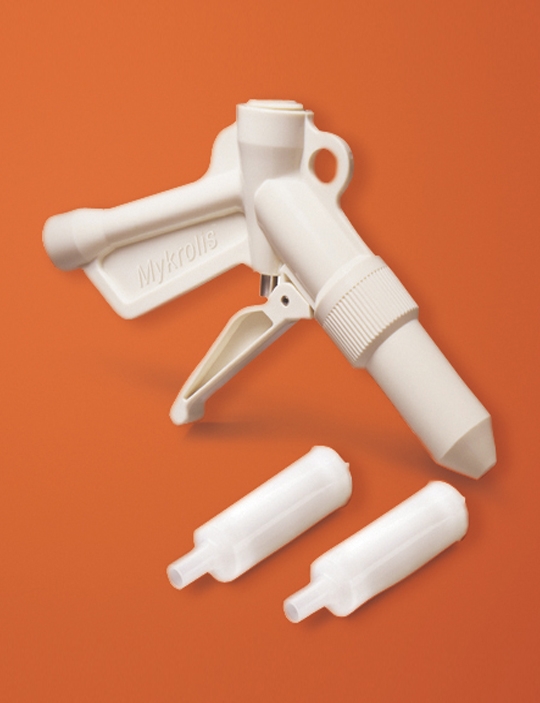

Wafergard® GN Gas Filter Gun
Easy-to-use, lightweight POU gas filter
● For point-of-use filtration of compressed gas
● Rated for 0.003 μm particle retention in gas applications
● Provides 10 cm2 of effective filtration area for high flow rates
● Nylon design, resistant to corrosion in acid and most solvent environments
檔案下載:
規格說明:
Easy-to-use, lightweight POU gas filter
● For point-of-use filtration of compressed gas
● Rated for 0.003 μm particle retention in gas applications
● Provides 10 cm2 of effective filtration area for high flow rates
● Nylon design, resistant to corrosion in acid and most solvent environments
檔案下載:
規格說明:
Materials: |
Filter gun body: White nylon-molded body Trigger: White nylon-molded body Valve system: Stainless steel 304 O-ring: EPDM Tubing: Polyurethane Cartridge filter: Polypropylene hydrophobic Durapore® PVDF membrane supported by a molded polypropylene structure Filter: Durapore® PVDF Shell: Polypropylene Support: Polypropylene Weight: Approx. 150 g (5.29 oz.) |
Connections: |
Filter gun: 1/4” NPTF inlet NPT female |
Retention: |
Greater than 99.9999999% removal of all particles (referenced at the most penetrating particle size) |
Removal rating: |
0.01 μm |
Operating conditions: |
Maximum forward differential pressure: 0.4 MPa at 20°C (68°F) Maximum reverse differential pressure: 0.03 MPa at 20°C (68°F) Maximum operation temperature with filter: 50°C (122°F) |
