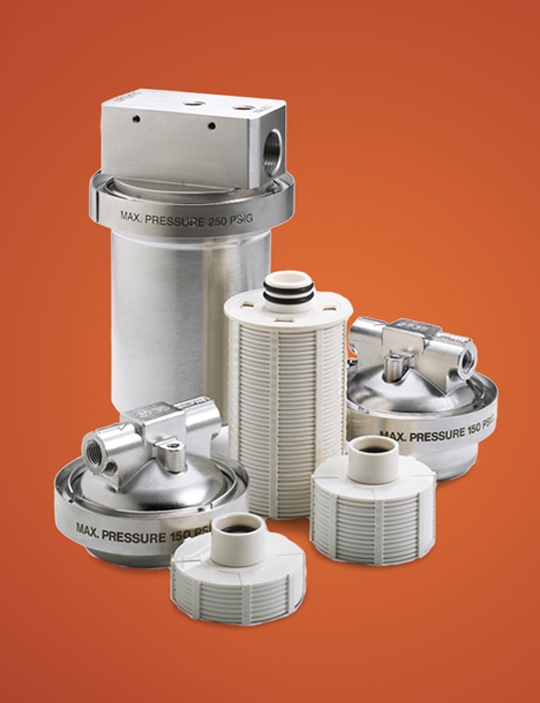

Wafergard® T-Line Gas Filters
Clean, dry air for industrial applications
● Flow rates of up to 1500 SLPM (50 SCFM)
● Effectively retains particles of 0.003 μm size and above
● Easy filter replacement without breaking gas line connections
● For use in non-toxic and non-flammable inert gas
● Available with 6-stack, 12-stack and 40-stack gas cartridge filters
檔案下載：
規格說明：
Clean, dry air for industrial applications
● Flow rates of up to 1500 SLPM (50 SCFM)
● Effectively retains particles of 0.003 μm size and above
● Easy filter replacement without breaking gas line connections
● For use in non-toxic and non-flammable inert gas
● Available with 6-stack, 12-stack and 40-stack gas cartridge filters
檔案下載：
規格說明：
| Materials: |
Head and bowl are electropolished 316 stainless steel with Viton® o-ring 6-Stack and 12-Stack Filter: Hydrophobic Durapore® PVDF membrane supported by molded polysulfone stacked disk 40-Stack Filter: Hydrophobic Teflon® PTFE membrane supported by molded Halar® ECTFE stacked disk Filter Seal: Viton® o-ring (alternate EPR o-ring seal included) |
| Filter area: |
6-stack 300 cm2 (46.5 in2) 12-stack: 600 cm2 (93.6 in2) 40-stack: 2000 cm2 (2.2 ft2) |
| Particle retention: |
Greater than 99.9999999% removal of all particles (referenced at the most penetrating particle size) |
| Removal rating: |
0.003 μm |
| Flow rate: |
6-stack: up to 300 SLPM (10 SCFM) 12-stack: up to 600 SLPM (20 SCFM) 40-stack: up to 1500 SLPM (50 SCFM) |
| Operating conditions: |
Maximum inlet pressure: 10.5 bar (150 PSIG) at 20°C (68°F), 3.5 bar (50 PSID) at 100°C (212°F) Maximum differential pressure: 4 bar (60 PSID) at 20°C (68°F) Maximum back pressure: 0.7 bar (10 PSID) at 20°C (68°F) Maximum recommended temperature: 120°C (248°F) |
| Warranty: |
2 year |
