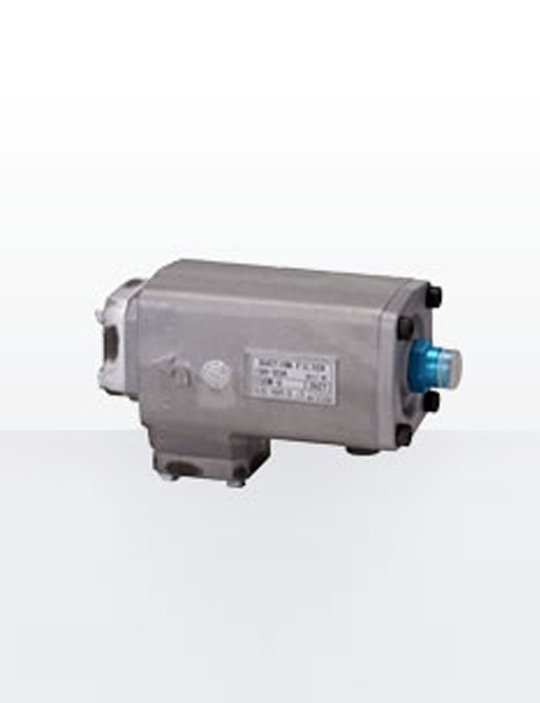

ISH

ISH

Application
This filter protects the hydraulic pump by preventing the circulation of line contamination from the reservoir tank.

Features
● The horizontal shape allows installation in areas without taking upward space
● Horizontal extraction type element
● Used for piping circuits where air infiltration is not a problem since the design does not allow for easy air extraction

Download :



Specifications :

Items

Standard specifications

Possible corresponding specifications / options, etc.

Corresponding fluid

Mineral oil

Phosphate ester oil, water glycol oil

Maximum working pressure

-0.1∼0.5MPa

-

Indicator

Visual type

Select from electric contact type, electric contact type (micro capacity)

Relief valve (Bypass)

Equipped

<Must be equipped>

Connection

Weld flange type

Can modify with Rc threaded flange type *1

Magnet

n/a

Installation optional
