TSF
Application
Application

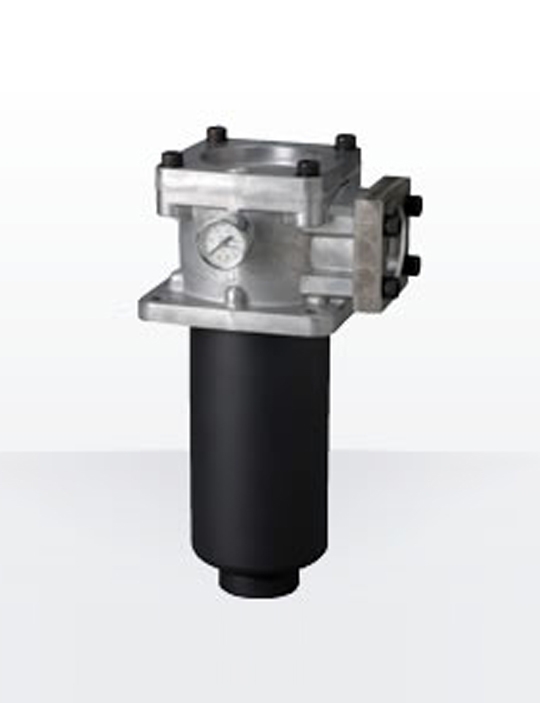

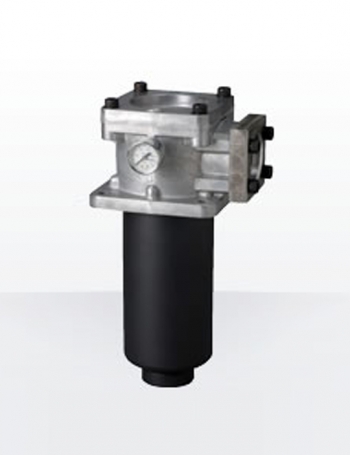

This filter protects the hydraulic pump by preventing the circulation of line contamination from the reservoir tank.
Features
● Installed directly on the surface of the tank and able to be set for OUT side tubing only● The upper extraction type makes element replacement easy
● The optional indicator detects the negative pressure for the secondary pressure of the element (OUT side)
檔案下載 ：
規格說明 ：
|
Items |
Standard specifications |
Possible corresponding specifications / options, etc. |
|
Corresponding fluid |
Mineral oil |
Phosphate ester oil, water glycol oil |
|
Maximum working pressure |
-0.1∼0.5MPa |
- |
|
Indicator |
n/a |
Visual type, Select from electric contact type, electric contact type (micro capacity) |
|
Relief valve (Bypass) |
n/a |
Installation optional |
|
Connection |
Rc threaded type |
Can be modified with an optional weld flange type |
|
Magnet |
n/a |
Installation optional |
