LN

LN

Application

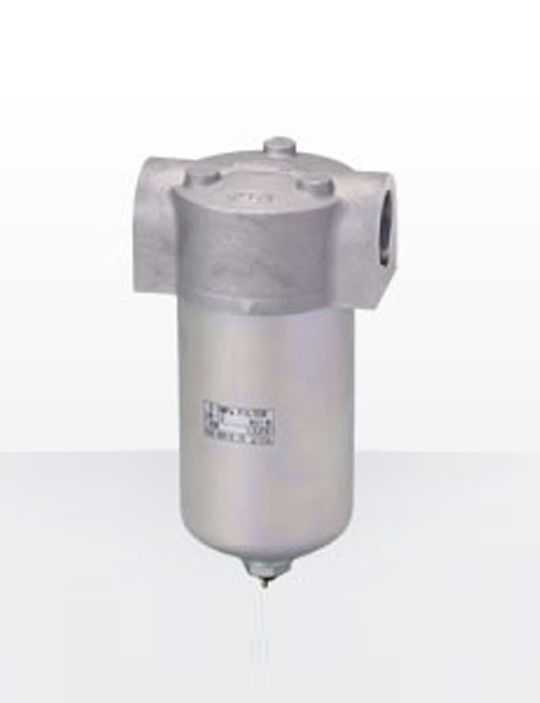

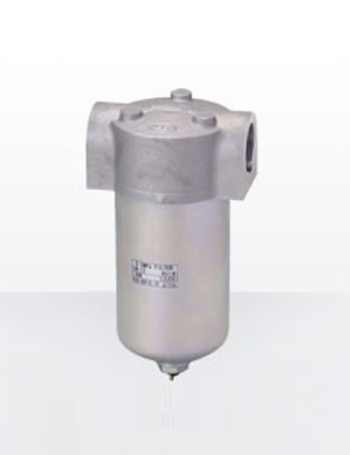

The line filter is installed in-line to maintain the oil purity level in the hydraulic piping and protect hydraulic equipment from contaminants.

Features
● Low number of components, simple and compact design
● Downward extraction type element


檔案下載:



規格說明:

Items

Standard specifications

Possible corresponding specifications / options, etc.

Corresponding fluid

Mineral oil

Phosphate ester oil, water glycol oil

Maximum working pressure

0~0.5MPa

-

Indicator

n/a

-

Relief valve (Bypass)

n/a

-

Connection

Rc threaded type

-

Magnet

n/a

Installation optional
