Application
Application

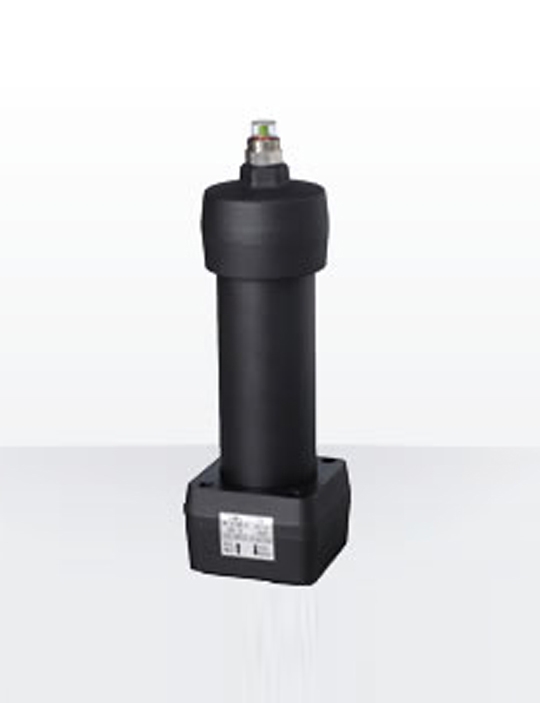

A line filter type mounted directly on top of the hydraulic manifold block.
Features
● The installation area is small because there are no horizontal projections.● Choose from 2 types of element lengths for all inner diameters
檔案下載：
規格說明：
|
Items |
Standard specifications |
Possible corresponding specifications / options, etc. |
|
Corresponding fluid |
Mineral oil |
Phosphate ester oil, water glycol oil |
|
Maximum working pressure |
0～25MPa |
- |
|
Indicator |
n/a |
Select from visual type, electric contact type, and electric contact type (micro capacity) |
|
Relief valve (Bypass) |
n/a |
Installation optional |
|
Connection |
Manifold type | - |
|
Magnet |
- |
- |
