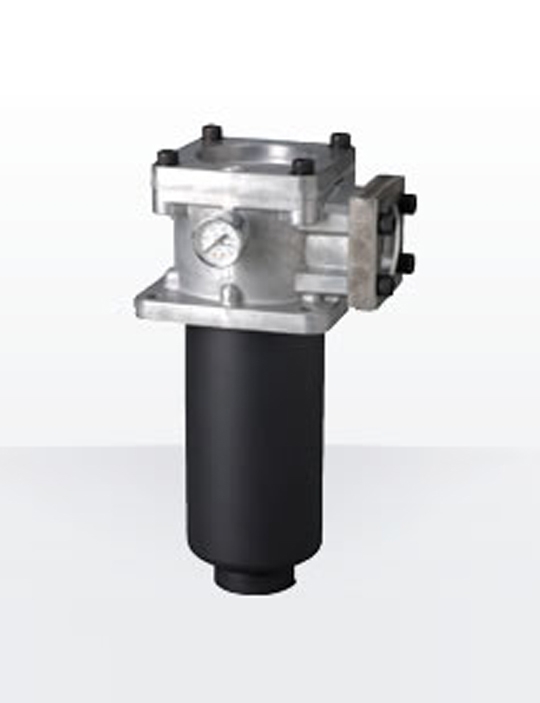

TRF
Application
The TRF is installed on the return line of the reservoir tank just before the reservoir tank to prevent contaminants from entering the tank.
Application
The TRF is installed on the return line of the reservoir tank just before the reservoir tank to prevent contaminants from entering the tank.
Features
● Installed directly on the tank surface and able to be set for IN side piping only.
檔案下載：
規格說明：
|
Items |
Standard specifications |
Possible corresponding specifications / options, etc. |
|
Corresponding fluid |
Mineral oil |
Phosphate ester oil, water glycol oil |
|
Maximum working pressure |
0～1MPa |
- |
|
Indicator |
n/a |
Select from visual type, electric contact type, and electric contact type (micro capacity) |
|
Relief valve (Bypass) |
n/a |
Installation optional |
|
Connection |
Rc threaded type |
Can be modified with an optional weld flange type |
|
Magnet |
- |
- |
