UR
Application

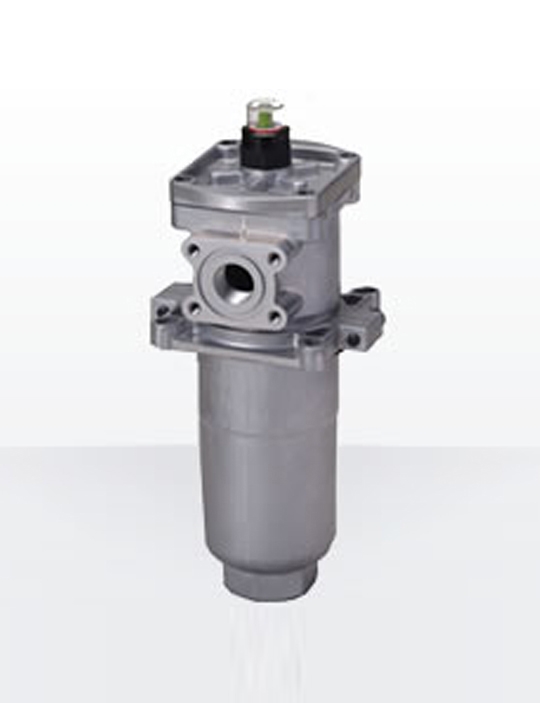

Install the filter before returning to the reservoir tank and prevent contaminants from entering into the tank.
Application
Install the filter before returning to the reservoir tank and prevent contaminants from entering into the tank.
Features
● Direct mounting on the tank and only IN side installation available● The unique movable flange design allows flexible adjustment of piping vertically and circumferentially.
● Design for workability
● Useable as a line oil filters
檔案下載：
規格說明：
|
Items |
Standard specifications |
Possible corresponding specifications / options, etc. |
|
Corresponding fluid |
Mineral oil |
Phosphate ester oil, water glycol oil |
|
Maximum working pressure |
0～1MPa |
- |
|
Indicator |
n/a |
Select from visual type, electric contact type, and electric contact type (micro capacity) |
|
Relief valve (Bypass) |
Equipped |
<Must be equipped> |
|
Connection |
Rc threaded type | Can be modified with an optional weld flange type |
|
Magnet |
- |
- |
