FP-750S

FP-750S

Application

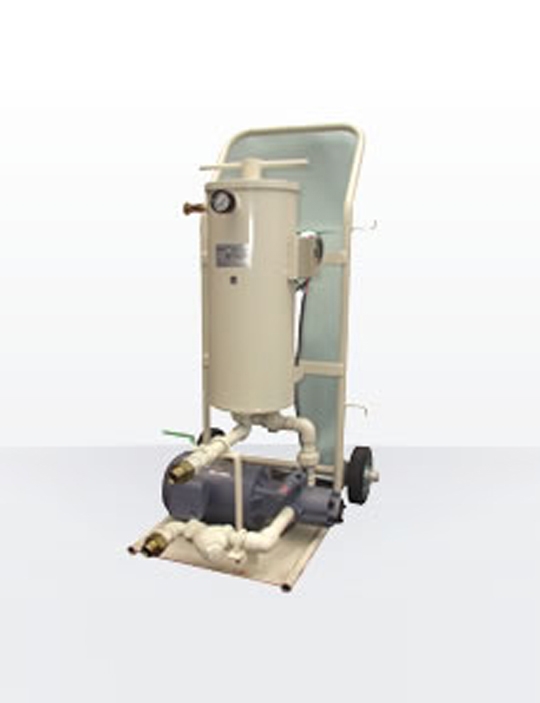

This product functions as an oil filter and oil pump. It protects the reservoir tank and tank from contamination when filling.

Features
● Wheel-equipped transportable type
● Choose from a wide range of filtration


檔案下載:



規格說明:

Items

Standard specifications

Corresponding fluid

Mineral oil

Pump discharge rate

30 liters/min×50Hz

Discharge pressure

0.35MPa

Motor output

Triple phase 200V×50/60Hz×0.75kW

Indicator

Visual type

Relief valve (Bypass)

Built-in pump、set pressure 0.3MPa


Connection

Rc threaded type
