FP-1500S-1010
Application

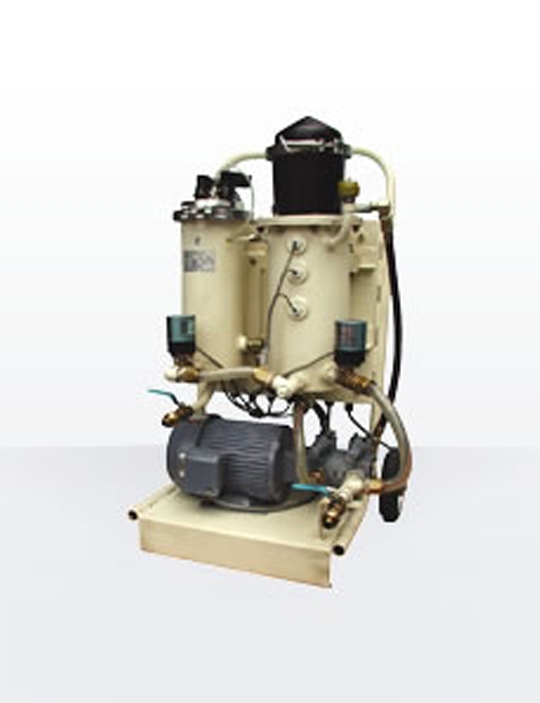

This product functions as an oil filter and oil pump. It protects the reservoir tank and tank from contamination when filling.
Application
This product functions as an oil filter and oil pump. It protects the reservoir tank and tank from contamination when filling.
Features
● 3 step filtration: centrifuge, water absorbing element, and element● When element replacement is needed the light blinks.
● Wheel-equipped transportable type
檔案下載：
規格說明：
|
Items |
Standard specifications |
|
Corresponding fluid |
Mineral oil |
|
Pump discharge rate |
9liters/min×50Hz、10.8liters/min×60Hz |
|
Discharge pressure |
1.0MPa |
|
Motor output |
Triple phase 200V×50/60Hz×1.5KW |
|
Indicator |
Visual type |
|
Relief valve (Bypass) |
Built-in pump、Set pressure 0.7MPa |
|
Connection |
Rc threaded type |
