FCF
Application

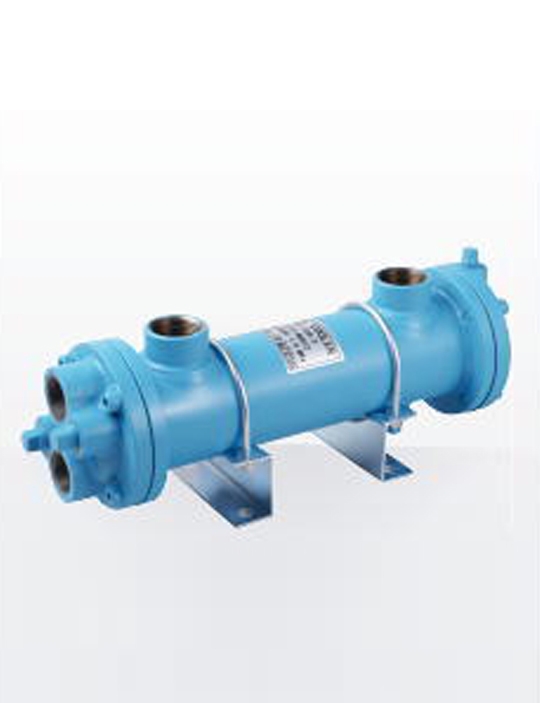

A fixed tube sheet design makes tube side cleaning easy. The oil is not very dirty but the coolant is very dirty, so the oil cooler is best suited in areas where the tube side is often cleaned.
Application
A fixed tube sheet design makes tube side cleaning easy. The oil is not very dirty but the coolant is very dirty, so the oil cooler is best suited in areas where the tube side is often cleaned.
Features
● Highly efficient, compact design with an in-house manufactured, 9/28 tip low-finned tube● Choose from 3 model types for all sizes for large and small oil flow rates
檔案下載：
規格說明：
|
Items |
Standard specifications |
Possible corresponding specifications / options, etc. |
|
|
Type |
Fixed tube sheet type |
- |
|
|
Maximum working pressure |
1.0MPa |
- |
|
|
Corresponding fluid |
Shell type | Mineral oil |
Water glycol oil、phosphate ester oil |
| Tube type | Freshwater | ||
|
Cooling tube |
Specifications | φ9 low- finned tube |
- |
| Material quality | C1220T | ||
|
Cooling area |
0.15～10m2 | - | |
|
Tie-in |
Shell type | Rc threaded type |
- |
| Tube type | Rc threaded type | ||
