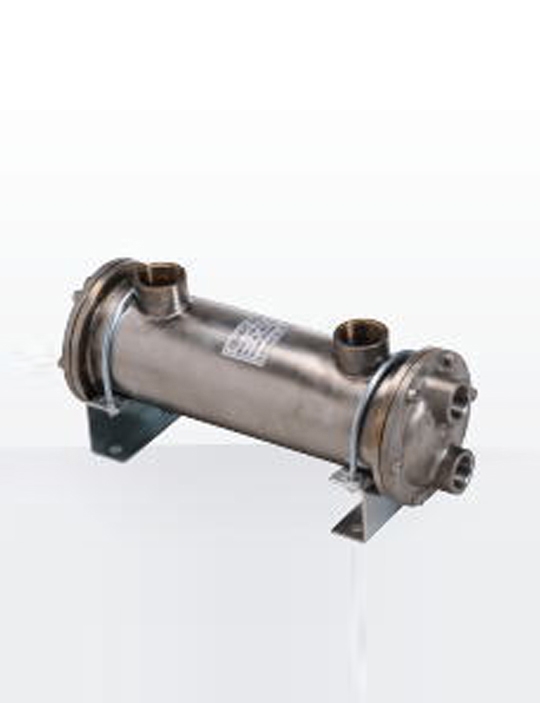

TCW
Application
The shell side of the heat exchanger is all stainless steel (SUS304) so oil and a wide variety of other fluids can be used.
Application
The shell side of the heat exchanger is all stainless steel (SUS304) so oil and a wide variety of other fluids can be used.
Features
● The shell side is constructed of all stainless steel● Choose from 2 model types for all sizes for large and small oil flow rates
● Choose from a cast metal or stainless steel water chamber cover.
檔案下載：
規格說明：
|
Items |
Standard specifications |
Possible corresponding specifications / options, etc. |
|
|
Type |
Fixed tube sheet type |
- |
|
|
Maximum working pressure |
1.0MPa |
- |
|
|
Corresponding fluid |
Shell type |
Mineral oil Freshwater Non-corrosive fluids for SUS 304 |
- |
| Tube type | Freshwater, hot water | ||
|
Cooling tube |
Specifications | φ9 bare tube |
- |
| Material quality | SUS304 | ||
|
Cooling area |
0.15～3.3m2 | - | |
|
Tie-in |
Shell type | Rc threaded type (number 300 is flanged type) |
- |
| Tube type | Rc threaded type | ||
