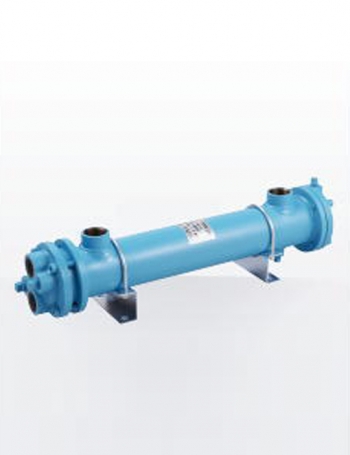

FCD/FCDB
Application
Floating tube sheet tube design allows for tube nest cleaning and replacement. Ideal for when there is a lot of dirt on the shell side (oil side).
Application
Floating tube sheet tube design allows for tube nest cleaning and replacement. Ideal for when there is a lot of dirt on the shell side (oil side).
Features
● Highly efficient, compact design with an in-house manufactured, 9/28 tip low-finned tube● Choose from 3 model types for all sizes for large and small oil flow rates
檔案下載：
規格說明：
|
Items |
Standard specifications |
Possible corresponding specifications / options, etc. |
|
|
Type |
Fixed tube sheet type |
- |
|
|
Maximum working pressure |
1.0MPa |
- |
|
|
Corresponding fluid |
Shell type | Mineral oil |
Water glycol oil、phosphate ester oil |
| Tube type | Freshwater | Sea water | |
|
Cooling tube |
Specifications | φ9 low- finned tube |
- |
| Material quality | C1220T | C6872T(Sea water) | |
|
Cooling area |
0.4～5.5m2 | - | |
|
Tie-in |
Shell type | Rc threaded type |
Able to choose flanged type (number 300 only) |
| Tube type | Rc threaded type | ||
