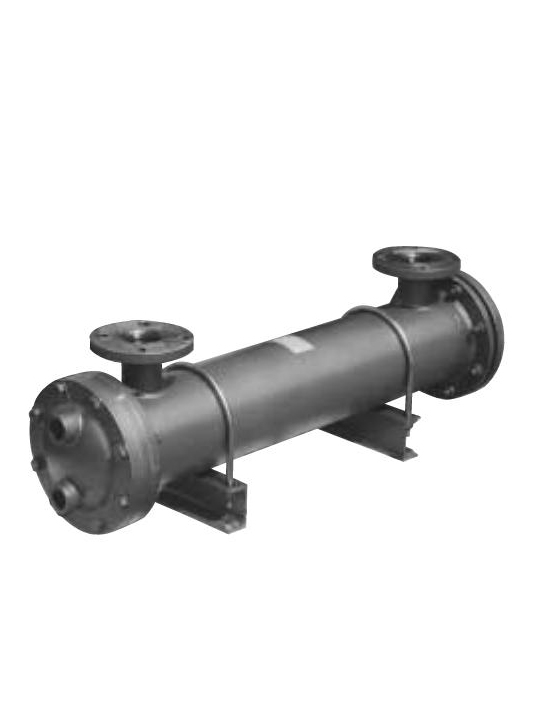

FPD
Application
Floating tube sheet tube design allows for tube nest cleaning and replacement. Ideal for when there is a lot of dirt on the shell side (oil side)
Application
Floating tube sheet tube design allows for tube nest cleaning and replacement. Ideal for when there is a lot of dirt on the shell side (oil side)
Features
● Self-manufactured φ12.7/28 Low Fin Tubes realized larger cooling surfaces compared to other equivalent heat exchangers.● Choose from 3 model types for all sizes for large and small oil flow rates
檔案下載：
規格說明：
|
Items |
Standard specifications |
Possible corresponding specifications / options, etc. |
|
|
Type |
Fixed tube sheet type |
- |
|
|
Maximum working pressure |
1.0MPa |
- |
|
|
Corresponding fluid |
Shell type | Mineral oil | Water glycol oil、phosphate ester oil |
| Tube type | Freshwater | - | |
|
Cooling tube |
Specifications | φ9 low- finned | - |
| Material quality | C1220T | - | |
|
Cooling area |
9～33m2 | - | |
|
Tie-in |
Shell type | Rc threaded type | Able to choose flanged type |
| Tube type | Rc threaded type | ||
