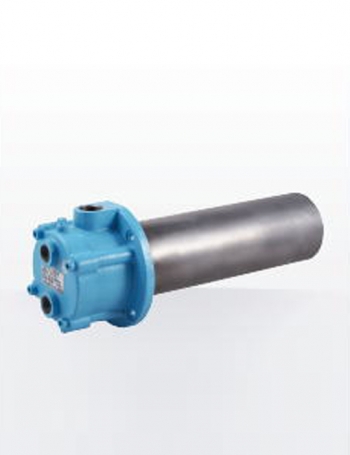

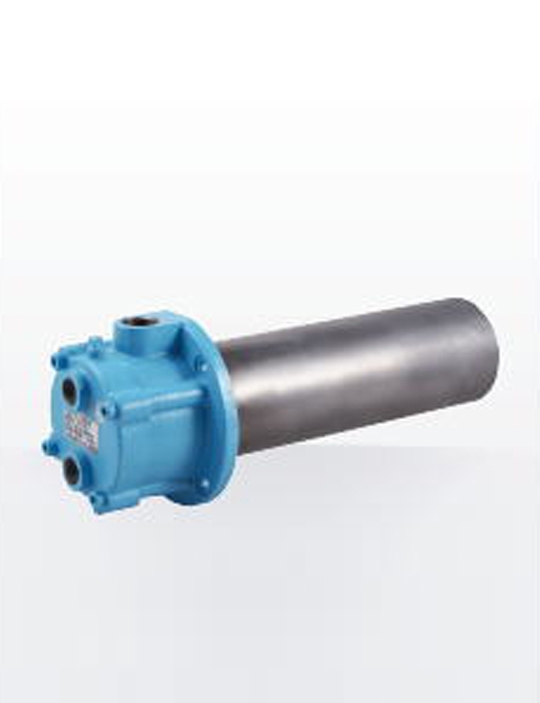

FCU
Application
The FCU is installed directly on the tank. It saves on space and piping processes. The U- shaped tubing makes it ideal for high temperatures.
Application
The FCU is installed directly on the tank. It saves on space and piping processes. The U- shaped tubing makes it ideal for high temperatures.
Features
● Highly efficient, compact design with an in-house manufactured, 9/28 tip low-finned tube● Choose from 3 model types for all sizes for large and small oil flow rates Specifications
檔案下載：
規格說明：
|
Items |
Standard specifications |
Possible corresponding specifications / options, etc. |
|
|
Type |
Installed directly on the tank,U-shaped tube |
- |
|
|
Maximum working pressure |
1.0MPa |
- |
|
|
Corresponding fluid |
Shell type | Mineral oil | Water glycol oil、phosphate ester oil |
| Tube type | Freshwater | - | |
|
Cooling tube |
Specifications | φ9 low- finned tube | - |
| Material quality | C1220T | - | |
|
Cooling area |
0.4～2.8m2 | - | |
|
Tie-in |
Shell type | Rc threaded type | - |
| Tube type | Rc threaded type | - | |
