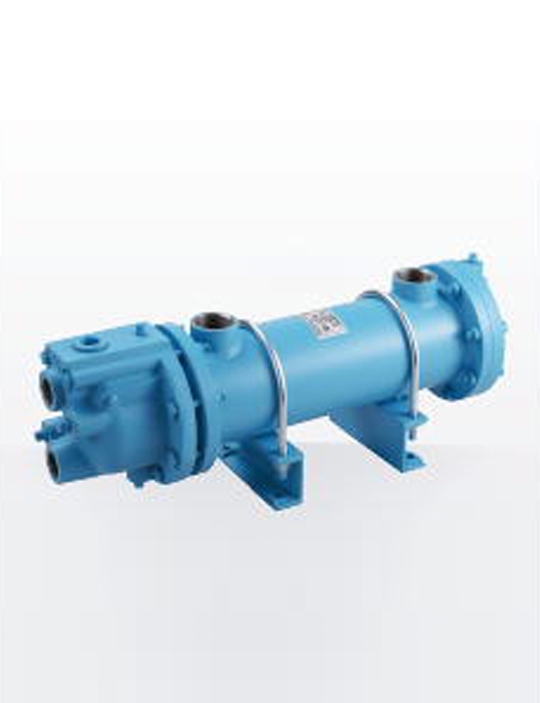

FCW
Application
A built-in temperature regulation valve in the water chamber makes the FCX ideal in places which require oil temperature regulation and control as well as an oil cooler.
Application
A built-in temperature regulation valve in the water chamber makes the FCX ideal in places which require oil temperature regulation and control as well as an oil cooler.
Features
● Highly efficient, compact design with an in-house manufactured, 9/28 tip low-finned tube● The water chamber cover has a built-in oil temperature regulation valve that stops cooling water flow when the oil temperature falls below the set temperature.
● The temperature regulation valve set value is fixed at 51℃. (can also manufacture for 40℃ and 45℃)
檔案下載：
規格說明：
|
Items |
Standard specifications |
Possible corresponding specifications / options, etc. |
|
|
Type |
Fixed tube sheet type |
- |
|
|
Maximum working pressure |
1.0MPa | - | |
|
Corresponding fluid |
Shell type | Mineral oil | Phosphate ester oil, water glycol oil |
| Tube type | Freshwater | - | |
|
Cooling tube |
Specifications | φ9 low- finned tube | - |
| Material quality | C1220T | - | |
|
Cooling area |
2.5～5.5m2 | - | |
|
Tie-in |
Shell type | Rc threaded type | - |
| Tube type | Rc threaded type | - | |
