ATL
Application

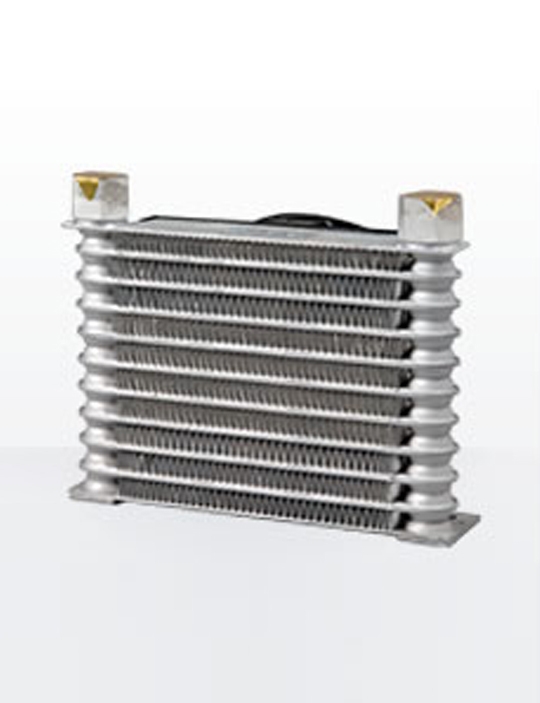

The most suitable Air-cooled oil cooler for a drain cooler
Application
The most suitable Air-cooled oil cooler for a drain cooler
Features
● Compact, air-cooled oil cooler● Choose from many voltage settings
檔案下載：
規格說明：
|
Items |
Standard specifications |
Possible corresponding specifications / options, etc. |
|
Maximum working pressure |
1.0MPa |
- |
|
Corresponding fluid |
Mineral oil |
- |
|
Radiator material |
Aluminum |
- |
|
Rated voltage |
Select single phase 100V or 200V×50/60Hz |
Single phase 115V, 120V, 220V, 230V are built-to-order. |
|
Nominal output(Motor) |
16/15W(ATL-1531：35/33W) |
- |
|
Permissible pressure change width |
Can not be used at an area subject to Pressure fluctuation |
- |
| Fan guard | Equipped |
- |
