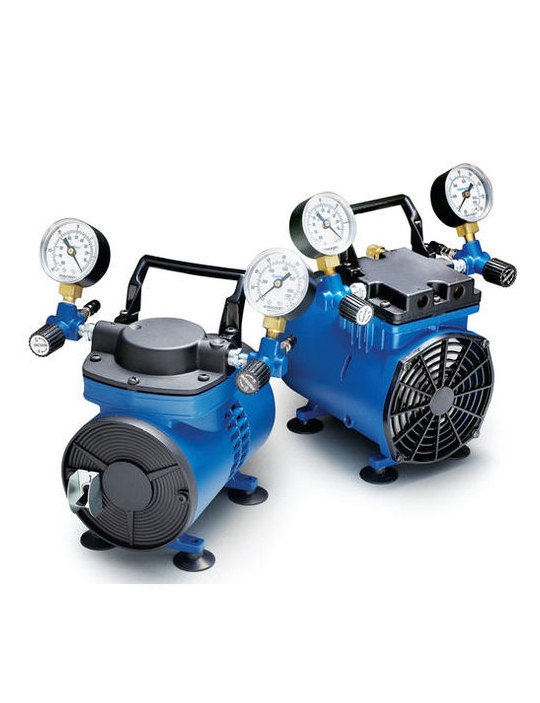

Chemical Duty Pump
Vacuum/Pressure Pumps
For flow rates of up to 37 L/min
The High Output Pump features a piston-driven design for greater power. The Chemical Duty Pump has a chemically-resistant head and diaphragm for use with corrosive chemicals and solvents.he High Output Pump features a piston-driven design for greater power.
The Chemical Duty Pump has a chemically-resistant head and diaphragm for use with corrosive chemicals and solvents.
Both pumps come with 70 cm of 1/4" tubing and a Millex FA50 filter for in-line moisture protection. Both are UL listed and CE marked.
Vacuum/Pressure Pumps
For flow rates of up to 37 L/min
The High Output Pump features a piston-driven design for greater power. The Chemical Duty Pump has a chemically-resistant head and diaphragm for use with corrosive chemicals and solvents.he High Output Pump features a piston-driven design for greater power.
The Chemical Duty Pump has a chemically-resistant head and diaphragm for use with corrosive chemicals and solvents.
Both pumps come with 70 cm of 1/4" tubing and a Millex FA50 filter for in-line moisture protection. Both are UL listed and CE marked.
檔案下載 ：
規格說明 ：
| High Output Pump | Chemical Duty Pump | |
| Maximum Vacuum, mbar (in. Hg) | 921 (27.2) | 813 (24) |
| Maximum Pressure, bar (psig) | 5.4 (80) | 2.45 (35) |
| Maximum Flow Rate, L/min (CFM) | 34 (1.2) | 37 (1.3) |
|
Materials of Construction (Pump head, housing, regulator) |
Cast aluminum | Cast aluminum |
| Weight, kg (lbs) | 5.3 (11.7) | 4.1 (9.0) |
|
Dimensions, cm (in.) H x W x L |
20.3 x 22.9 x 25.4 (8 x 9 x 10) |
17.8 x 17.8 x 20.3 (7 x 7 x 8) |
| Connections | 1/4" Stepped hose barb | 1/4" Stepped hose barb |
