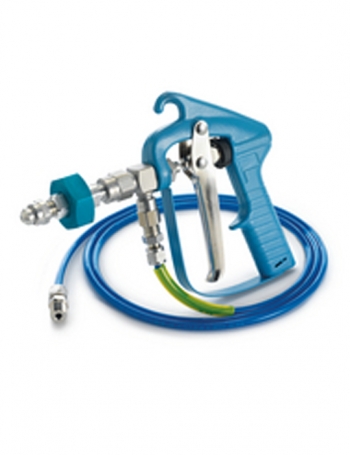

Filterjet™ Solvent Dispenser
Use to spray a concentrated jet of ultraclean solvent or rinse solution on surfaces for cleaning.
Use to spray a concentrated jet of ultraclean solvent or rinse solution on surfaces for cleaning. Filter holder, XX40 025 00, which is part of the dispenser, can also be used by itself for in-line pressure filtration of gases.
Use to spray a concentrated jet of ultraclean solvent or rinse solution on surfaces for cleaning.
Use to spray a concentrated jet of ultraclean solvent or rinse solution on surfaces for cleaning. Filter holder, XX40 025 00, which is part of the dispenser, can also be used by itself for in-line pressure filtration of gases.
檔案下載 ：
規格說明 ：
| Materials | Stainless steel filter holder and filter support screens; nylon-coated aluminum dispenser handle; PTFE valve; fluoroelastomer filter-holder gaskets; polyethylene pressure tubing; stainless steel jet nozzle |
| Filter Diameter (mm) | 25 |
| Filtration Area, cm² | 3.9 |
| Prefilter Diameter, mm | 22 (thick depth prefilter) |
| Max Inlet Pressure, bar (psi) | 3.5 (50) |
| Fittings | 1/4 in. NPTF to 1/4 in. |
| Dimensions | Approximately 229 mm (9 in.) from nozzle tip to end of dispenser handle, with 1.8 m (6') tubing |
