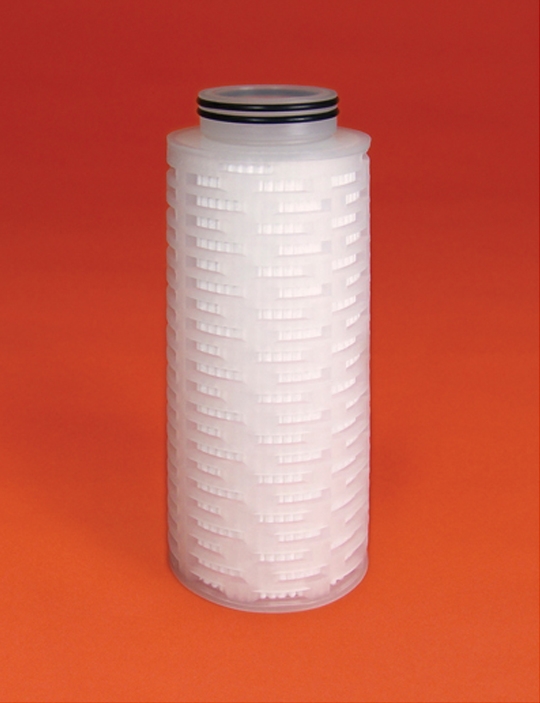

Panelgard™ 226 Plus PES Cartridge Filters
High Flow PES cartidge filter for flat panel display applications using weak acids/bases or DI Water
● Hydrophilic polyethersulfone membrane eliminates the need for prewetting and flushing
● Asymmetric membrane structure provides high flow rates with lower differential pressure and a longer cartridge lifetime
● High flow and efficient particle removal - ensures rapid particle removal in one-pass and recirculating applications
● Provides excellent chemical compatibility - weak acids, bases and DI water
檔案下載：
規格說明：
High Flow PES cartidge filter for flat panel display applications using weak acids/bases or DI Water
● Hydrophilic polyethersulfone membrane eliminates the need for prewetting and flushing
● Asymmetric membrane structure provides high flow rates with lower differential pressure and a longer cartridge lifetime
● High flow and efficient particle removal - ensures rapid particle removal in one-pass and recirculating applications
● Provides excellent chemical compatibility - weak acids, bases and DI water
檔案下載：
規格說明：
| Materials: |
Membrane: Polypropylene Supports, core, sleeve: Polypropylene O-rings: EPDM or E-FKM (encapsulated fluoroelastomer) |
| Maximum operating conditions: |
Maximum forward differential pressure: 0.41 MPa (4.1 bar, 59.46 PSI) at 20°C (68°F) Maximum reverse differential pressure: 0.15 MPa (1.5 bar, 21.75 PSI) at 20°C (68°F) Maximum operating temperature: 60°C (140°F) at the above conditions |
