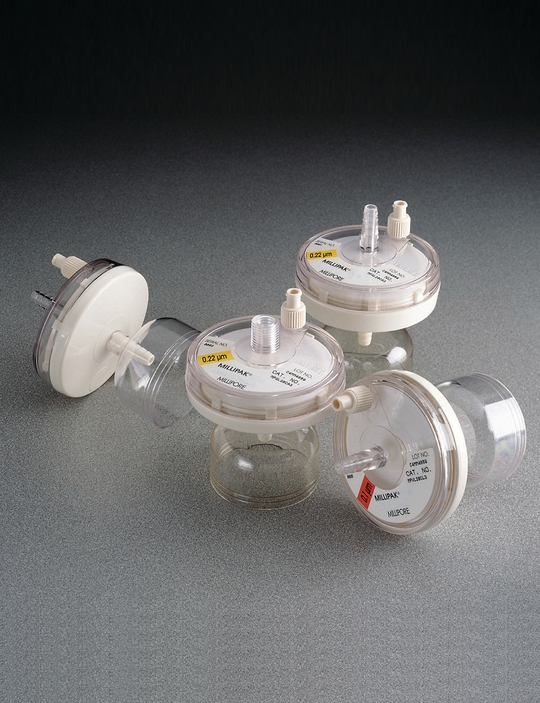

Millipak Disposable Filter Units
Stacked disc filters designed for the removal of particles and microorganisms from liquids and gases.
Description
Millipak disposable filter units are stacked disc filters designed for the removal of particles and microorganisms from liquids and gases. The stacked disc design allows minimal hold-up volume and particle shedding, making Millipak units ideally suited for high value-added applications. All Millipak units are made with Durapore PVDF membranes, providing high flow rates and throughputs, low extractables, broad chemical compatibility and the lowest protein binding of any membrane available.
Millipak units are available in 0.1 µm, 0.22 µm and 0.45 µm pore sizes and a variety of inlet and outlet connections. Five different stack sizes allow optimum flexibility for easy scale-up and system sizing. For added convenience, some Millipak units are supplied sterile. Each unit is 100% integrity tested during manufacture to guarantee integrity.
For traceability and easy identification, each Millipak unit is labelled with its catalogue number, lot number, pore size and serial number.
Typical Applications
● Sterile filtration of parenterals, diagnostics, and buffers
● Sterile filtration of media and biologicals
● Point-of-use filter for high purity water
Stacked disc filters designed for the removal of particles and microorganisms from liquids and gases.
Description
Millipak disposable filter units are stacked disc filters designed for the removal of particles and microorganisms from liquids and gases. The stacked disc design allows minimal hold-up volume and particle shedding, making Millipak units ideally suited for high value-added applications. All Millipak units are made with Durapore PVDF membranes, providing high flow rates and throughputs, low extractables, broad chemical compatibility and the lowest protein binding of any membrane available.
Millipak units are available in 0.1 µm, 0.22 µm and 0.45 µm pore sizes and a variety of inlet and outlet connections. Five different stack sizes allow optimum flexibility for easy scale-up and system sizing. For added convenience, some Millipak units are supplied sterile. Each unit is 100% integrity tested during manufacture to guarantee integrity.
For traceability and easy identification, each Millipak unit is labelled with its catalogue number, lot number, pore size and serial number.
Typical Applications
● Sterile filtration of parenterals, diagnostics, and buffers
● Sterile filtration of media and biologicals
● Point-of-use filter for high purity water
規格說明 ：
| Materials of Construction | |
| Housing; Support Discs | Polycarbonate |
| Filter | Hydrophilic PVDF |
| Filtration Area, cm2 | |
| Millipak 20 | 100 |
| Millipak 40 | 200 |
| Millipak 60 | 300 |
| Millipak 100 | 500 |
| Millipak 200 | 1000 |
| Maximum Differential Pressure, bar (psid) | |
| Forward: 4.1 (60) @ 25 °C; 1.7 (25) @ 80 °C; 0.35 (5) @ 123 °C. Reverse: 0.7 (10) @ 25 °C | |
| Maximum Inlet Pressure, bar (psig) | |
| 5.2 (75) @ 25 °C | |
| Bacterial Retention (for Millipak 0.1 µm and 0.22 µm only) | |
| Samples were quantitatively retentive of a minimum Brevundimonas diminuta challenge concentration of 1 x 10⁷ CFU/cm² using ASTM® F838 methodology. | |
| Bacterial Endotoxins | |
| Aqueous extraction contains ≤0.5 EU/mL as determined by the Limulus Amebocyte Lysate (LAL) Test | |
| Gravimetric Extractables | |
| Millipak 20 | ≤1.0 mg/unit |
| Millipak 40 | ≤1.5 mg/unit |
| Millipak 60 | ≤2.0 mg/unit |
| Millipak 100 | ≤2.5 mg/unit |
| Millipak 200 | ≤5.0 mg/unit |
| Oxidizable Substances | |
| Will meet the USP Oxidizable Substances Test requirements after a water flush of ≥200 mL | |
| Toxicity | |
| Component materials meet the requirements of the USP Class VI Biological Test for Plastics. Millipak units also meet the requirements of the USP General (Mouse) Safety Test and USP Elution (cytotoxicity) test. | |
| Sterilization | |
| 3 autoclave cycles of 90 min @ 123 °C; capable of 45 kilogray (4.5 Megarad) gamma exposure; not in-line steam sterilizable | |
| Integrity Test, Bubble Point | |
| 0.1 µm units | ≥4830 mbar (70 psig) air with water |
| 0.22 µm units | ≥3450 mbar (50 psig) air with water |
| 0.45 µm units | ≥1790 mbar (26 psig) air with water |
