42mm Stainless Steel Filter Holders
Ultraclean or sterilize liquids or gases by pressure filtration.
Applications
Ultraclean or sterilize liquids or gases by pressure filtration. Autoclave with Durapore filter inplace.
![](/UserFiles/images/42mm%20Stainless%20Steel%20Filter%20Holders-A.jpg)
90 mm filter holder
Replacement Parts
![](/UserFiles/images/42mm%20Stainless%20Steel%20Filter%20Holders-B.jpg)
142 mm filter holder
Replacement Parts
檔案下載:
![](http://www.well-honor.com/UserFiles/images/but_01.jpg)
規格說明 :
相關訊息:![](/UserFiles/images/%E5%89%8D%E5%BE%80%E7%B6%B2%E5%9D%80.jpg)
Ultraclean or sterilize liquids or gases by pressure filtration.
Applications
Ultraclean or sterilize liquids or gases by pressure filtration. Autoclave with Durapore filter inplace.
![](/UserFiles/images/42mm%20Stainless%20Steel%20Filter%20Holders-A.jpg)
90 mm filter holder
Replacement Parts
1 | Hose Connector |
2 | Hex-cap Screws |
3 | Valve |
4 | Top Plate |
5 | O-ring |
6 | Support Screen |
7 | Underdrain Support |
8 | Bottom Plate |
9 | Hose Connector |
10 | Legs |
![](/UserFiles/images/42mm%20Stainless%20Steel%20Filter%20Holders-B.jpg)

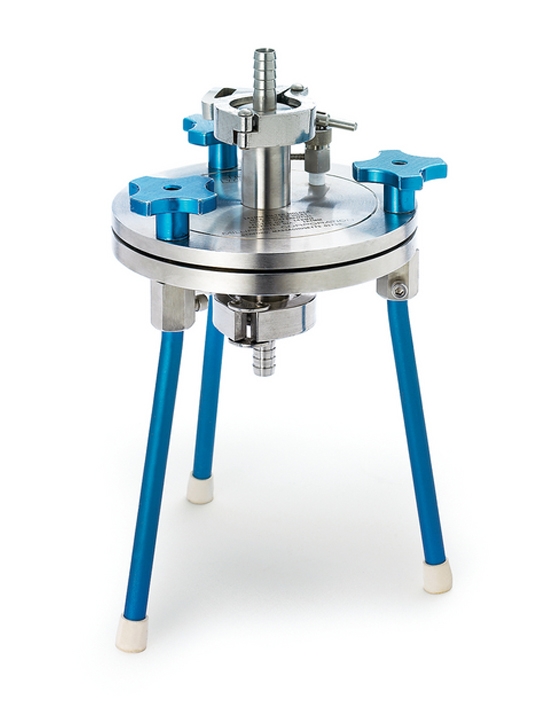

142 mm filter holder
Replacement Parts
1 | Hand Knob |
2 | Hose connector, 1 1/2-inch to 14 mm hose, stainless steel 316 L |
3 | 1 1/2-inch gasket, silicone |
4 | 1 1/2-inch clamp, stainless steel 304 |
5 | Vent/Relief Valve |
6 | Top Plate |
7 | O-ring |
8 | Flow Deflector |
9 | Support Screen |
10 | Underdrain Support |
12 | Bottom Plate |
14 | Filter Holder Legs |
檔案下載:
![](http://www.well-honor.com/UserFiles/images/but_01.jpg)
規格說明 :
90 mm Holder | 142 mm Holder | |
Materials | ||
Holder | 316 stainless steel with anodized aluminum legs | 316 stainless steel with anodized aluminum legs |
O-rings | PTFE | PTFE |
Filter Diameter (mm) | 90 | 142 |
Filtration Area, cm² | 45.5 | 127 |
Prefilter Diameter, mm | ||
Type AP | 75 | 124 |
Type RW | 90 | 142 |
Maximum Inlet Pressure, bar (psi) | 19 (275) | 14 (200) |
Maximum Differential Pressure, bar (psid) | 5 (75) | 7 (100) |
Dimensions | ||
Height, cm (in) | 17.1 (plus inlet connector) | 27 (plus inlet connector) |
Diameter, cm (in) | 12.1 | 18.4 |
Fittings | ||
Fittings, Inlet/Outlet | 1/4 in. NPTF with connections supplied for 9.5 mm I.D. hose | 1-1/2 in. Sanitary Flange with clamps and adapters supplied for 14 mm I.D. hose |
Vent/Relief Valve | 1/8" NPTM vent/relief valve attachment | 1/8" NPTM vent/relief valve attachment |
Shipping Weight, kg (lb) | 2.8 (6.2) | 6.4 (14.1) |
