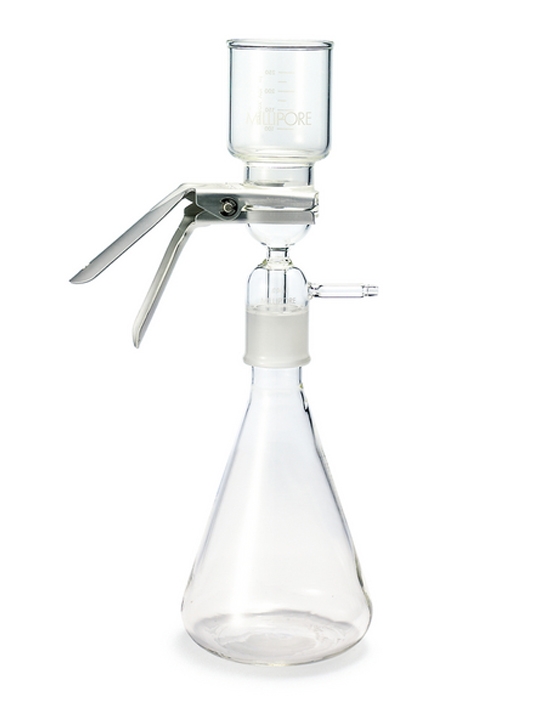

Glass Filter Holders
Vacuum filter aqueous, organic or corrosive liquids for particulate contamination analysis. Also recommended for HPLC solvent filtration
Applications
Vacuum filter aqueous, organic or corrosive liquids for particulate contamination analysis. Also recommended for HPLC solvent filtration. Contact Millipore for recommended membranes for filtering organic solvents.
Borosilicate glass parts in contact with liquid, with ground glass sealing surfaces. Vacuum connection to integral base and flask cap is above filtrate exit level, avoiding drawing filtrate into vacuum tubing.
Do not use this filter holder with flammable liquids.
規格說明 ：
Note: Glass base and cap with stainless steel screen also available
Replacement Parts
相關訊息：
Vacuum filter aqueous, organic or corrosive liquids for particulate contamination analysis. Also recommended for HPLC solvent filtration
Applications
Vacuum filter aqueous, organic or corrosive liquids for particulate contamination analysis. Also recommended for HPLC solvent filtration. Contact Millipore for recommended membranes for filtering organic solvents.
Borosilicate glass parts in contact with liquid, with ground glass sealing surfaces. Vacuum connection to integral base and flask cap is above filtrate exit level, avoiding drawing filtrate into vacuum tubing.
Do not use this filter holder with flammable liquids.
規格說明 ：
| Materials | |
| XX15 047 00 | Borosilicate glass funnel, base and tubulated cap; anodized aluminum spring clamp; fritted glass filter support |
| Filter Diameter (mm) | 47 |
| Filtration Area, cm² | 9.6 |
| Funnel Capacity, mL | 300 |
| Outlet Fitting | 6 mm (1/4 in.) O.D. tubulated cap sidearm to vacuum |
| Dimensions | |
| Height, cm (in) | 43 |
| Diameter, cm (in) | Flask: 14; funnel: 7.6 |
Note: Glass base and cap with stainless steel screen also available

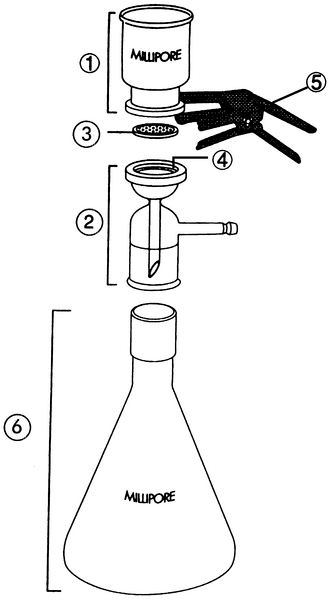

Replacement Parts
| 1 | Funnel |
| 2 | Vacuum Base |
| 3 | Support Screen |
| 4 | Gasket |
| 5 | Clamp |
| 6 | Ground Joint Flask |
