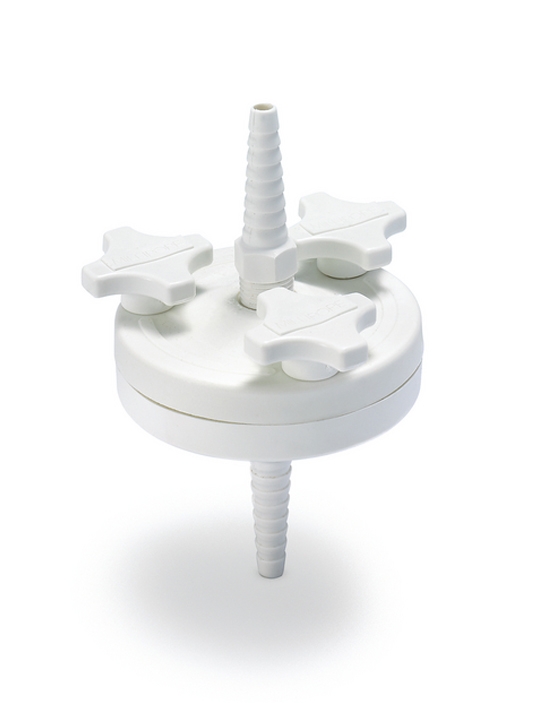

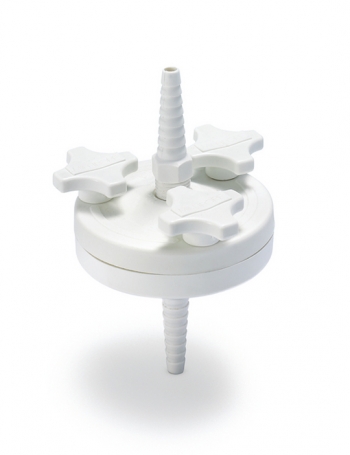

In-Line Filter Holder
Ultraclean liquids or gases in-line by pressure filtration. Open for filter change without disturbing attached plumbing.
Applications
Ultraclean liquids or gases in-line by pressure filtration. Open for filter change without disturbing attached plumbing.
規格說明 ：
相關訊息：
Ultraclean liquids or gases in-line by pressure filtration. Open for filter change without disturbing attached plumbing.
Applications
Ultraclean liquids or gases in-line by pressure filtration. Open for filter change without disturbing attached plumbing.
規格說明 ：
| Materials | Filled polypropylene; nylon hand knobs |
| Filter Diameter (mm) | 47 |
| Filtration Area, cm² | 13.8 |
| Prefilter Diameter, mm |
42 (thick depth prefilter) or 47 (membrane prefilter) |
| Maximum Inlet Pressure, bar (psi) | 5.5 (80) |
| Maximum Operating Temperature, °C | 70 at 5.5 bar |
| Fittings, Inlet/Outlet | 1/4 in. NPTF; connector for 6 mm to 9.5 mm I.D. flexible tubing |
| Dimensions | |
| Length, cm (in) | 12 |
| Diameter, cm (in) | 7.6 |
