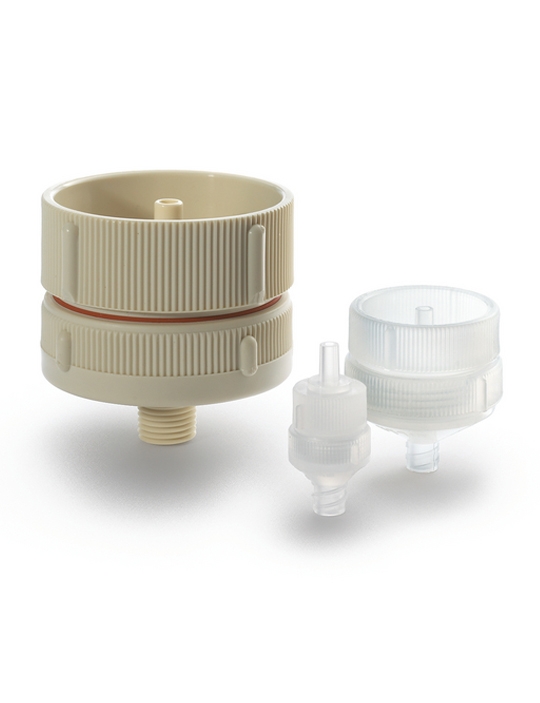

Swinnex® Filter Holders
Use to ultraclean or sterilize small volumes of liquids dispensed by syringe.
Applications
Use to ultraclean or sterilize small volumes of liquids dispensed by syringe. Connect Swinnex 47 mm filter holder with tubing to pressurized reservoir or automatic filling machine for filtering larger volumes.
Specifications ：
Use to ultraclean or sterilize small volumes of liquids dispensed by syringe.
Applications
Use to ultraclean or sterilize small volumes of liquids dispensed by syringe. Connect Swinnex 47 mm filter holder with tubing to pressurized reservoir or automatic filling machine for filtering larger volumes.
Specifications ：
| Swinnex 13 | Swinnex 25 | Swinnex 47 | |
| Materials | |||
| Housing | Polypropylene device; silicone gasket | Polypropylene | Polypropylene |
| Seal Material | Silicone | Silicone | Silicone |
| Maximum Differential Pressure, bar (psi) | |||
| 3.5 (50) | 3.5 (50) | 5.2 (75) | |
| Dimensions | |||
| Length, cm (in) | 3.5 | 3.7 | 5.4 |
| Diameter, cm (in) | 1.7 | 3.2 | 5.8 (2.3) |
| Filter Diameter (mm) | 13 | 25 | 47 |
| Prefilter Diameter, mm | 10 (thick depth prefilter) | 22 (thick depth prefilter) | 42 (thick depth prefilter) or 47 (membrane prefilter) |
| Filtration Area, cm² | 0.7 | 3.4 | 13.8 |
| Fittings | |||
| Fitting Inlet | Female Luer-Lok® | Female Luer-Lok® | 1/4 in. NPTM with female Luer slip interior |
| Fitting Outlet | |||
| Sterilization Method | Autoclavable with filter in place | ||
*Use locking inlet connection to avoid leakage at high pressures with < 10 mL syringes
**Accessory stopper, XX20 047 18, fits outlet connector for seating in 1 L flask, XX10 047 05.
