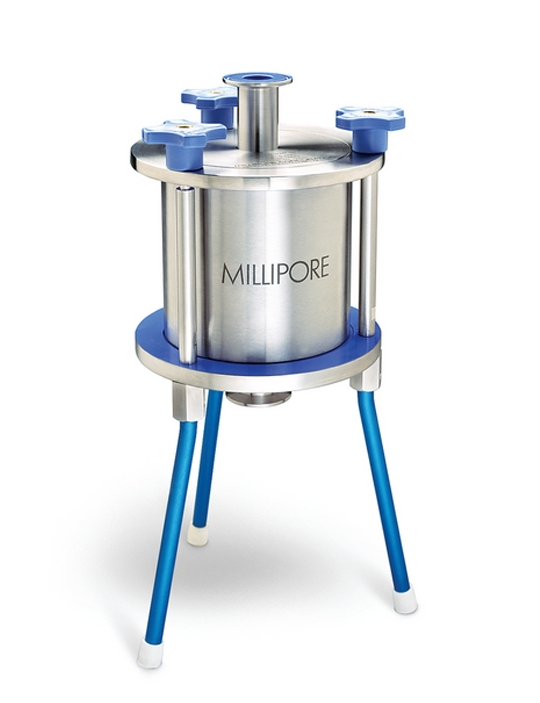

Hazardous Waste Filtration System
USEPA EP Toxicity Test and Toxicity Characteristic Leaching Procedure (TCLP) product
Applications
USEPA EP Toxicity Test and Toxicity Characteristic Leaching Procedure (TCLP) product
● Separates solid and liquid phases of waste samples
● Contains interior holder with PTFE coating to prevent heavy metal
contamination
● Allows easy introduction of bulky samples through wide entry port and removable top plate
● Disassembles for easy cleaning
檔案下載 ：
規格說明 ：
相關訊息：
USEPA EP Toxicity Test and Toxicity Characteristic Leaching Procedure (TCLP) product
Applications
USEPA EP Toxicity Test and Toxicity Characteristic Leaching Procedure (TCLP) product
● Separates solid and liquid phases of waste samples
● Contains interior holder with PTFE coating to prevent heavy metal
contamination
● Allows easy introduction of bulky samples through wide entry port and removable top plate
● Disassembles for easy cleaning
檔案下載 ：
規格說明 ：
| Materials | 316 stainless steel; aluminum legs; molded polypropylene handwheels; PTFE seal |
| Fittings | 1-1/2 in. Sanitary Flange with clamps and adapters for 14 mm (9/16 in.) I.D. hose; 1/8 in. NPTF upstream port for vent/relief |
| Maximum Pressure, bar (psi) | 6.9 (100) |
| Dimensions | |
| Filter Diameter (mm) | 142 |
| Filtration Area, cm² | 120 |
| Prefilter Diameter, mm | 124; type AP depth filter |
| Diameter, cm | 18.4 |
| Height, cm | 42.2 (16.6) |
| Shipping Weight, kg (lb) | 12.3 (27.1) |
