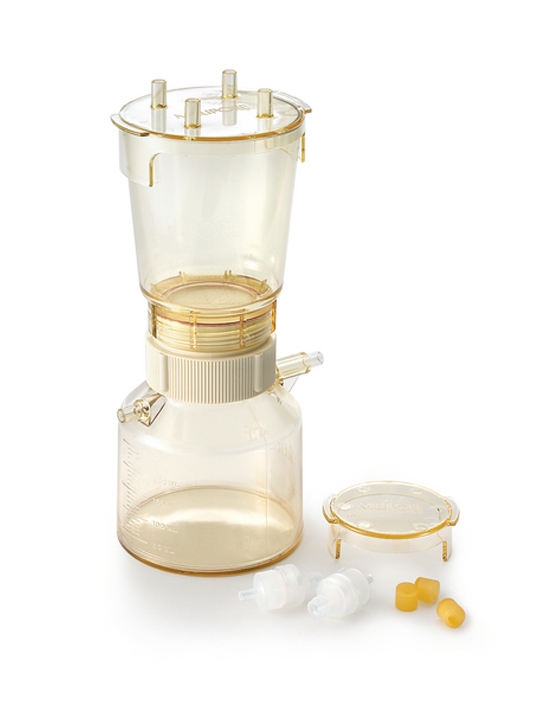

Sterifil® Aseptic System and Holder
For general filtration applications and filtration of samples for particulate or biological contamination analysis.
Replacement Parts
Sterifil 500 filter holder
Applications
Used for general filtration applications and filtration of samples for particulate or biological contamination analysis. The closed unit protects sample and filtrate from environmental contamination. Sterifil holder and funnel available separately (without receiver flask and cover) to use with standard 1 L vacuum filtering flask or multiple place manifold.
檔案下載 ：
規格說明 ：
相關訊息：
For general filtration applications and filtration of samples for particulate or biological contamination analysis.
Replacement Parts
| 1 | Sterifil cover |
| 2 | Caps |
| 3 | Swinnex® Filter Holder |
| 5 | Sterifil funnel |
| 6 | Sterifil holder base |
| 7 | Support screen for 47-mm Swinnex filter holder |
| 8 | O-ring, (5-329) |
| 9 | Stopper |
| 10 | Sterifil receiver flask |
| 11 | Sterifil receiver flask cover |
Sterifil 500 filter holder
Applications
Used for general filtration applications and filtration of samples for particulate or biological contamination analysis. The closed unit protects sample and filtrate from environmental contamination. Sterifil holder and funnel available separately (without receiver flask and cover) to use with standard 1 L vacuum filtering flask or multiple place manifold.
檔案下載 ：
規格說明 ：
| Materials of Construction | Polysulfone funnel, funnel cover, receiver flask and cover; polypropylene holder base, and filter support screen; silicone stopper | |
| Filter Diameter (mm) | 47 | |
| Filtration Area, cm² | 13.8 | 15.2 |
| Funnel Capacity, mL | 250 or 500 | |
| Prefilter Diameter, mm | 42 (thick depth prefilter) or 47 (membrane prefilter) | |
| Outlet Fitting | Holder outlet stopper fits standard 1 L filtering flask | |
| Receiver Flask Fitting | Receiver flask ports accept 6 mm (1/4") I.D. tubing or male Luer slip connection for vacuum, drain or vent | |
| Cover Inlet and Vent Ports | Female Luer slip | |
| Dimensions | Sterifil Aseptic System | Sterifil 500 |
| Height, cm (in) | 20.3 | 14.5 |
| Diameter, cm (in) | 10.8 | 8.5 |
相關訊息：
