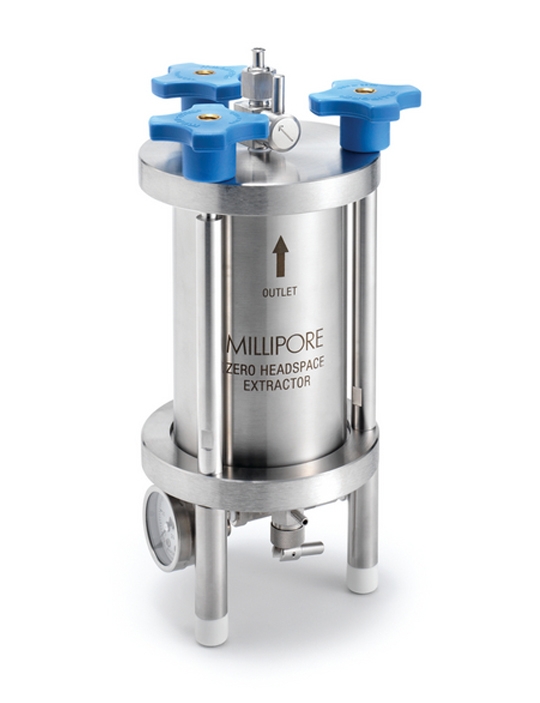

ZHE Hazardous Waste Filtration System
Millipore's ZHE (Zero Head Space Extractor) system has been designated by the USEPA as a suitable apparatus for Toxicity Characteristic Leaching Procedure (TCLP).
Applications
Millipore's ZHE (Zero Head Space Extractor) system has been designated by the USEPA as a suitable apparatus for Toxicity Characteristic Leaching Procedure (TCLP).
● Pressurizes filter without introducing air because of movable piston design
● Prevents loss of volatiles
The system cannot pressurize unless completely assembled; this eliminates accidentally “shooting the piston” out of the unit and assures safe operation. Choose both manual and automatic venting modes.
規格說明 ：
相關訊息：
Millipore's ZHE (Zero Head Space Extractor) system has been designated by the USEPA as a suitable apparatus for Toxicity Characteristic Leaching Procedure (TCLP).
Applications
Millipore's ZHE (Zero Head Space Extractor) system has been designated by the USEPA as a suitable apparatus for Toxicity Characteristic Leaching Procedure (TCLP).
● Pressurizes filter without introducing air because of movable piston design
● Prevents loss of volatiles
The system cannot pressurize unless completely assembled; this eliminates accidentally “shooting the piston” out of the unit and assures safe operation. Choose both manual and automatic venting modes.
規格說明 ：
| Materials | 316 stainless steel body; molded polypropylene handwheels; fluoroelastomer-A O-rings |
| Connections | |
| Top Plate | 1/8 in. NPTF upstream port for two-way SST valve with 1/8 in. NPTF for Luer fitting |
| Bottom Plate | 1/4 in. NPTF port for 1/4 in. elbow or 1/4 in. x 1/8 in. NPT T-fitting; 1/4 in. NPTF port for pressure relief valve |
| Maximum Pressure, bar (psi) | 3.5 (50) |
| Dimensions | |
| Filter Diameter (mm) | 90 |
| Filtration Area, cm² | 64 |
| Prefilter Diameter, mm | 90 |
| Diameter, cm | 15.9 |
| Height, cm | 27.9 |
| Shipping Weight, kg | 6.8 |
| Piston Break Force, bar | 0.35 – 0.7 |
