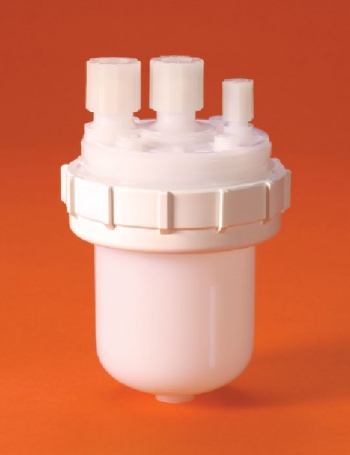

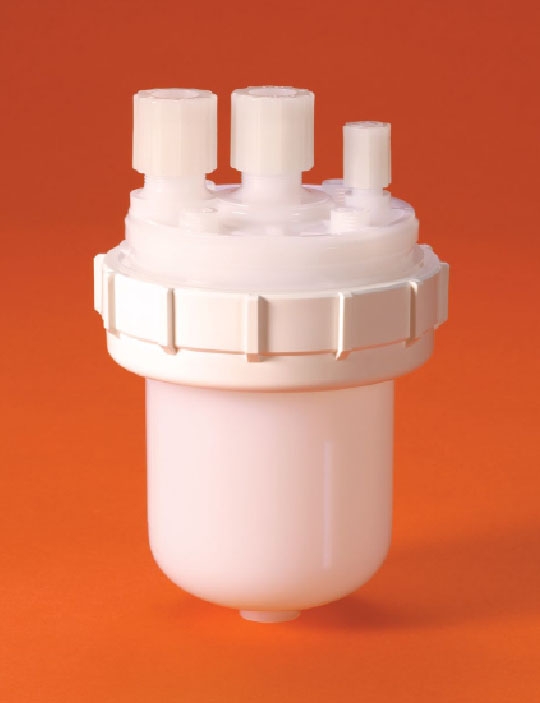

Chemgard™ U-Line Housings

Chemgard™ U-Line Housings

PFA housings for compact manifold configurations in high-purity chemical applications

● Noncontaminating metal-free
● Superior sealing mechanism
● Accomodates a wide range of filters
● Low cost of ownership
● Versatile installation

檔案下載 :



規格說明 :

Materials:

PFA head and bowl: Teflon® fluoropolymer resin
Teflon® fluoropolymer encapsulated Viton® fluoroelastomer (TEV)
Locking ring: PVDF (nonwetted part)

Connections:

Cartridge: Code 0, 2-222 o-rings
Inlet/outlet: 3/4" or 1" Flaretek® fittings
Vent/drain: 1/4" Flaretek® fittings

Maximum operating conditions:

Maximum operating temperature: 100ºC (212ºF)
