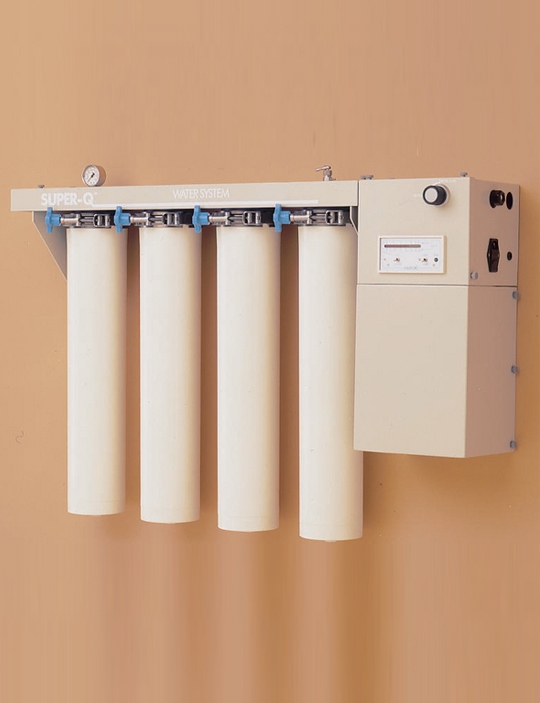

Super-Q Plus Water Purification Systems
Produces up to 12 L/min of Type 1 ultrapure water
Ultrapure Water Quality on Demand
The Super-Q Plus System is a high-flow water system designed to provide the "final polish" to water which has been pretreated by reverse osmosis, distillation or deionization. Super-Q Plus systems consistently produce ultrapure water quality which exceeds Type 1 ASTM/CAP/CLSI specifications.
The Super-Q Plus water system features a modular design for the production of ultrapure water. The system also features automatic recirculation of water on an hourly basis to maintain water quality between uses. Because Super-Q product water is produced "on demand", there's no need to store water and risk degrading water quality over time.
Applications
● Tissue culture media preparation
● Reagent preparation
● Microelectronics wafer rinsing
Cartridge Selection Guide
Download：
Specifications：
Produces up to 12 L/min of Type 1 ultrapure water
Ultrapure Water Quality on Demand
The Super-Q Plus System is a high-flow water system designed to provide the "final polish" to water which has been pretreated by reverse osmosis, distillation or deionization. Super-Q Plus systems consistently produce ultrapure water quality which exceeds Type 1 ASTM/CAP/CLSI specifications.
The Super-Q Plus water system features a modular design for the production of ultrapure water. The system also features automatic recirculation of water on an hourly basis to maintain water quality between uses. Because Super-Q product water is produced "on demand", there's no need to store water and risk degrading water quality over time.
Applications
● Tissue culture media preparation
● Reagent preparation
● Microelectronics wafer rinsing
Cartridge Selection Guide
| Function | Cartridge |
| Prefiltration | Milligard TP Cartridge |
| Organic removal | Super-C Cartridge |
| Inorganic removal | Ion-Ex Cartridge |
| Trace organic removal | Organex-Q Cartridge |
| Bacteria/particle removal | Durapore TP Cartridge |
Download：
| Flow Rate, L/min | 10–12 |
| Resistivity, MΩ·cm at 25 °C |
18.2 Ultrapure Water: 18.2 |
| TOC, ppb* | < 10 |
| Microorganisms, cfu/mL** | < 0.01 |
| Heavy Metals, ppm | < 0.01 |
| Silicates, ppm | < 0.03 |
| Total Dissolved Solids, ppm | |
| Dimensions 3-Bowl System | |
| Height, cm (in.) | 80 (31.5) |
| Width, cm (in.) | 94.5 (37.2) |
| Depth, cm (in.) | 22 (8.7) |
| Weight (empty), kg (lb) | 32.7 (72) |
| Electrical Requirements |
120 V/60 Hz or 230 V/50 Hz Pump/Motor: 0 – 33 H.P. |
|
*With the Organex-Q cartridge installed and feedwater pretreated by reverse osmosis. **With Durapore cartridge installed |
|
