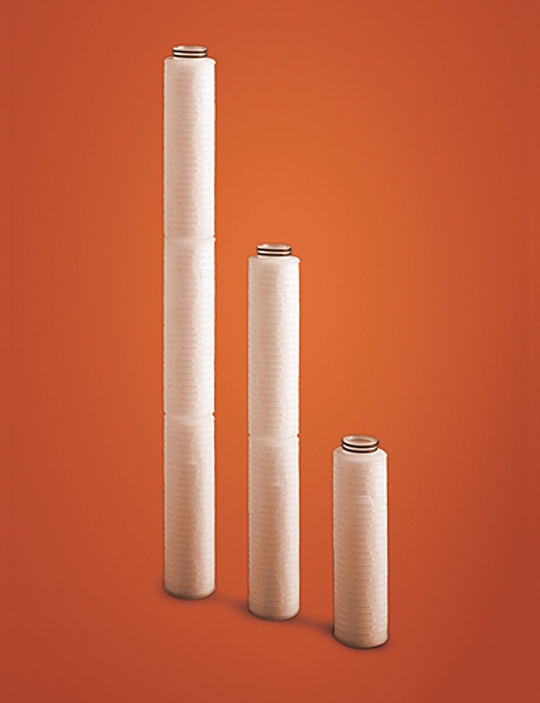

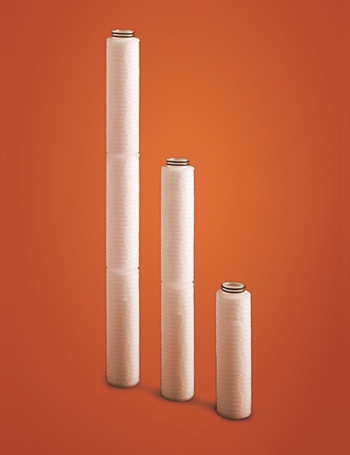

Microgard™ Plus and LE Cartridge Filters
Hydrophobic UPE filters with superior cleanliness for high-purity chemical and photochemical filtration
● Low surfactant binding, excellent wettability and superior downstream cleanliness
● Exceptional retention efficiency
● Ultra-high membrane area, ideal for high flow with reduced pressure drop
● Select cartridges available with special cleaning to ensure the lowest levels of organic and metal extractables
● Ideal for high-purity chemical and photochemical filtration
檔案下載：
規格說明：
Hydrophobic UPE filters with superior cleanliness for high-purity chemical and photochemical filtration
● Low surfactant binding, excellent wettability and superior downstream cleanliness
● Exceptional retention efficiency
● Ultra-high membrane area, ideal for high flow with reduced pressure drop
● Select cartridges available with special cleaning to ensure the lowest levels of organic and metal extractables
● Ideal for high-purity chemical and photochemical filtration
檔案下載：
規格說明：
| Materials: |
Membrane: Hydrophobic ultra-high molecular-weight polyethylene (UPE) Supports core and sleeve: High-density polyethylene (HDPE) O-rings: EPDM and Teflon® fluoropolymer encapsulated Viton® fluoroelastomer o-ring (TEV) |
| Connection: |
4” UPX: 0.01 μm 9200 cm2 (9.9 ft2), others: 8000 cm2 (8.6 ft2) 10”: 0.01 μm 13200 cm2 (14.21 ft2), 0.02 μm 12000 cm2 (12.9 ft2), others 10000 cm2 (10.7 ft2) 20”: 0.02 μm 24000 cm2 (25.8 ft2), others 20000 cm2 (21.5 ft2) 30”: 30000 cm2 (32.3 ft2) |
| Maximum operating conditions: |
Maximum forward differential pressure: 3.4 bar (50 PSID, 3.5 Kg/cm2) at 20°C (68°F) Maximum temperature: 60°C (140°F) Supports core and sleeve: High-density polyethylene (HDPE) |
