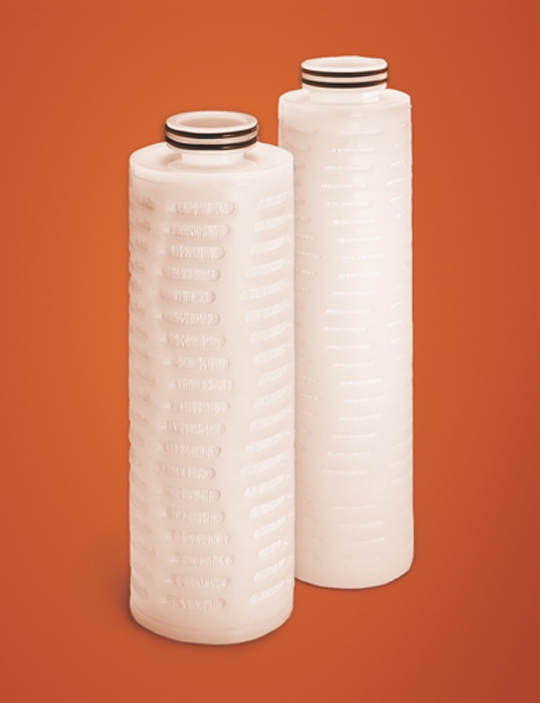

Microgard™ UPE and UPX Cartridge Filters
Hydrophobic UPE/UPX filters with superior cleanliness for high-purity chemical and photochemical filtration
● Exceptional retention efficiency
● Low surfactant binding, excellent wettability and superior downstream cleanliness
● Ideal for high-purity chemical and photochemical filtration
Download：
Specifications：
Hydrophobic UPE/UPX filters with superior cleanliness for high-purity chemical and photochemical filtration
● Exceptional retention efficiency
● Low surfactant binding, excellent wettability and superior downstream cleanliness
● Ideal for high-purity chemical and photochemical filtration
Download：
Specifications：
| Materials: |
Membrane :Hydrophobic UPE Supports, core sleeve: HDPE |
| Surface area: |
UPE 10": 8500 cm2 (9.1 ft22) 20": 17,000 cm2 (18.3 ft2) 30": 25,500 cm2 (27.4 ft2) UPX 4": 5000 cm2 (5.4 ft2) 10": 11,000 cm2 (11.8 ft2) |
| Connection: |
Code 0, 2-222 |
| Retention: |
0.05 µm, 0.1 µm, 0.2 µm |
| Application: |
Solvent-based chemicals |
| Operating conditions: |
Maximum forward differential pressure 0.35 MPa (3.5 bar, 50 psid, 3.5 kg/cm2) @ 25°C (77°F) Maximum reverse differential pressure 0.27 MPa (2.7 bar, 40 psid, 2.8 kg/cm2) @ 20°C (68°F) Operating temperature 60°C (140°F) |
