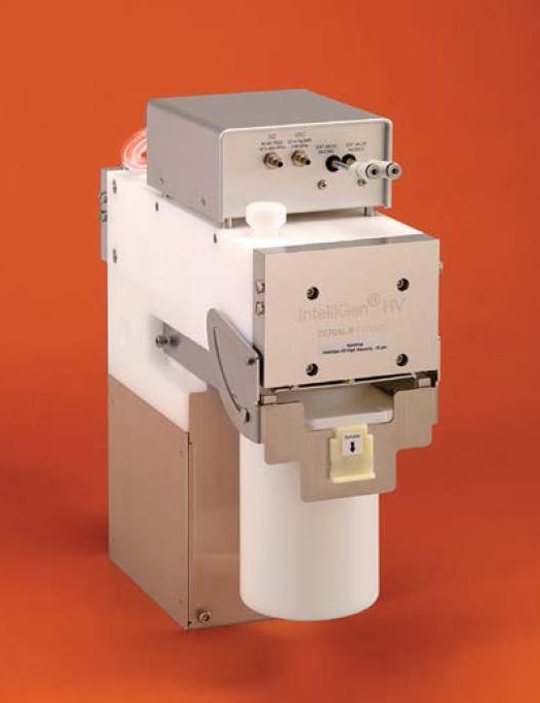

IntelliGen® HV High-viscosity Fluid Dispense System
Advanced two-stage technology enables precise dispense and filtration of high-purity, high-viscosity fluids
● Short cycle time
● Simplified Programming
● Bubble detection and prevention
● High reliability
● Easier filter changeout
檔案下載：
規格說明：
Advanced two-stage technology enables precise dispense and filtration of high-purity, high-viscosity fluids
● Short cycle time
● Simplified Programming
● Bubble detection and prevention
● High reliability
● Easier filter changeout
檔案下載：
規格說明：
| Materials: | Pump: Wetted PTFE, modified PTFE Kalrez® |
| Filter: |
Membrane: Ultra-high molecular weight polyethylene (UPE) Core, cage, end cap: Polyethylene Housing: High-density polyethyene (HDPE) |
| Dispense performance: |
Repeatability: , 0.03 mL 3 sigma Maximum dipsense volume Dispense rate: 0.1-3.0 mL/sec Viscosity range: 100 -20,000 cP Maximum dispense pressure: 1.7 MPa (250 PSI) Fill rate: 0.1 - 3.0 mL/sec (automatically controlled) Flitration rate: 0.1 - 3.0 mL/sec (automatically controlled) |
| Inlet gas type: | Regulated N2 |
| Inlet gas pressure: | 0.41 - 0.45 MPa (60-65 PSI) |
| Inlet gas minimum flow rate: | 3.0 SLPM |
| Vacuum: | -68 kPa (20" |
| Electrical: | 24 VDC, 1.75A |
