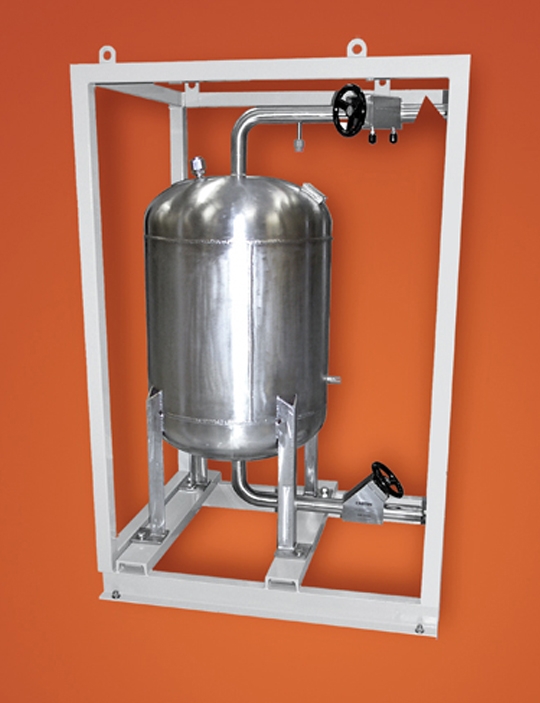

GateKeeper® 200M Bulk Gas Purifiers
High-flow gas purification
● Consistently delivers ultrapure gas
● Designed for use with CDA or inert gases
● Guards against impurity spikes from liquid storage tanks and inconsistent supply gas quality
● Does not release hydrocarbons that may contaminate the process
● Uses ambient temperature purification technology – no power or heat required
● High-flow gas purification
檔案下載：
規格說明：
High-flow gas purification
● Consistently delivers ultrapure gas
● Designed for use with CDA or inert gases
● Guards against impurity spikes from liquid storage tanks and inconsistent supply gas quality
● Does not release hydrocarbons that may contaminate the process
● Uses ambient temperature purification technology – no power or heat required
● High-flow gas purification
檔案下載：
規格說明：
| Materials of construction: | 316L stainless steel, electropolished 10 Ra |
| Media: |
Model SS200MI : Nickel metallic Model SS200MZ: Inorganic |
| Gases purified: |
Model SS200MI: N2, He, Ne, Kr, Ar, halocarbons, light hydrocarbons Model SS200MZ: CDA |
| Outlet purity: |
Model SS200MI: N2 <1 ppb H2, CO, CO2; <100 ppt (parts-per-trillion) H2O, O2 Model SS200MZ: <1 ppb H2S, H2O, CO2, amines, acid gases, and alcohols; <100 ppt NOx; <10 ppt NH3; <1 ppt NMHC, siloxanes, SO2 |
| Outlet particle filtration: | 20 μm |
| Maximum differential pressure: | 1379 kPa (200 PSID) |
| Minimum operating pressure: | 101 kPa (14.7 PSIA) |
| Maximum flow rate: | 20000 SLPM |
| Nominal flow rate: | 3500 SLPM |
| Leak rating: | 4 × 10-9 atm cc/sec |
| Maximum inlet challenge of contaminant to maintain product efficiency: | 10 ppm (part-per million) |
| Lifetime: | One year at nominal flow rate with 1 ppm inlet challenge of moisture |
| Maximum operating temperature: | 65°C (149°F) |
