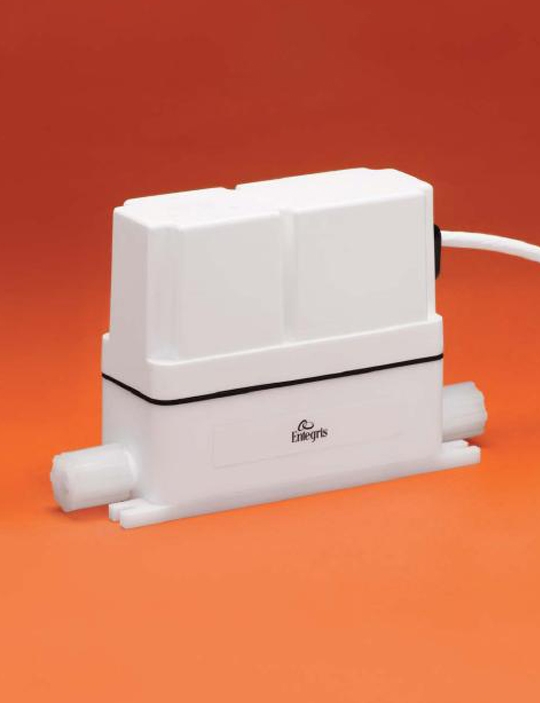

NT®整合流量控制器 Model 6510
● Ideal for continuous flow control in critical dispense applications, batch control for chemical spiking and blending or on-demand chemical mixing applications.
● Precise flow control at full scale flow ranges as low as 0-15 milliliters per minute.
● Uses proven and reliable differential pressure flow measurement technology and advanced closed-loop process control.
● The small footprint saves valuable space and allows toolmakers to integrate more process functionality.
● 與化學品相接觸的表面為PTFE, 對於處理寬範圍的高純度，腐蝕性的化學品是安全和可靠的。
● Hydrofluoric acid compatible sensor option provides many years of service in this harsh chemical.
● 非金屬的零件,可提供耐腐蝕性。
● integral 壓力轉換器,可提供額外的製程訊息。
● On-board LED's provide visual indicators for alarming conditions. A discrete two-wire output is also provided.
● The DeviceNet™ communication protocol option provides critical diagnostics for alarms, troubleshooting and preventive maintenance.
● 具最新進的步進閥和流量技術的特色,結合密封在內部的電子控制可作為流量控制器。
● Industry standard Flaretek® flared port connections reduce entrapment area, minimize footprint, provide system design flexibility and simplify installation.
● 在運送前,100%功能測試。 校正性能至精確度為1% 滿刻度。
規格說明 ：
● Ideal for continuous flow control in critical dispense applications, batch control for chemical spiking and blending or on-demand chemical mixing applications.
● Precise flow control at full scale flow ranges as low as 0-15 milliliters per minute.
● Uses proven and reliable differential pressure flow measurement technology and advanced closed-loop process control.
● The small footprint saves valuable space and allows toolmakers to integrate more process functionality.
● 與化學品相接觸的表面為PTFE, 對於處理寬範圍的高純度，腐蝕性的化學品是安全和可靠的。
● Hydrofluoric acid compatible sensor option provides many years of service in this harsh chemical.
● 非金屬的零件,可提供耐腐蝕性。
● integral 壓力轉換器,可提供額外的製程訊息。
● On-board LED's provide visual indicators for alarming conditions. A discrete two-wire output is also provided.
● The DeviceNet™ communication protocol option provides critical diagnostics for alarms, troubleshooting and preventive maintenance.
● 具最新進的步進閥和流量技術的特色,結合密封在內部的電子控制可作為流量控制器。
● Industry standard Flaretek® flared port connections reduce entrapment area, minimize footprint, provide system design flexibility and simplify installation.
● 在運送前,100%功能測試。 校正性能至精確度為1% 滿刻度。
檔案下載 ：
| 進口/ 出口 | 尺寸 | ||
| 口徑連接 | A | B | C |
| 1/4"Flaretek®軟管接頭 | 4.64" (117.9 mm) | 0.67" (17.0 mm) | 7.38" (187.5 mm) |
| 3/8"Flaretek®軟管接頭 | 4.64" (117.9 mm) | 0.67" (17.0 mm) | 7.52" (191.0 mm) |
| 1/2"Flaretek®軟管接頭 | 4.76" (120.9 mm) | 0.67" (17.0 mm) | 7.68" (195.1 mm) |
| 製造的材料︰ | ||
| Wetted parts: |
Body, diaphragms: PTFE Sensor interface: PFA or CTFE Primary o-ring: Kalrez® |
|
| Nonwetted parts: | PTFE, polypropylene, Viton®, PVDF, Polyurethane, nylon, PVC, FEP | |
| Flow measurement: |
±1% of full scale from greater than 20-100% of full scale ±2.5% of full scale from 10 to 20% of full scale Accuracy not specified from 0 –10% of full scale (Calibrated using deionized water at 23°C [73°F]) |
|
| Repeatability: |
±0.5% full scale from greater than 20-100% of full scale ±1.0% of full scale from 10-20% of full scale |
|
| Pressure measurement: | 0-414 kPa (0-60 PSIG) | |
| Pressure accuracy: | ±1% of full scale | |
| 操作壓力︰ | 0 – 414 kPa (0 – 60 PSIG) | |
| Output signals: | Two 4-20 mA electrically isolated outputs, one for flow and one for pressure or DeviceNet™ communication | |
| 反應時間︰ | <3 seconds from 10-95% of full scale flow range | |
| Over-pressure limit: | 689.5 kPa (100 PSIG) | |
| Process temperature: |
10°-65°C (50°-149°F) for code P1 and P2 10°-35°C (50°-95°F) for code P5 |
|
| Electrical input: | 24 VDC (±10%) at 1 amp | |
| Setpoint input signal: | 4-20 mA, 0-10 VDC, 0-5 VDC or DeviceNet™ communication | |
| Enclosure: | IP64 | |
| Weight: | 1.6 kg (3.5 lb) approximate | |
