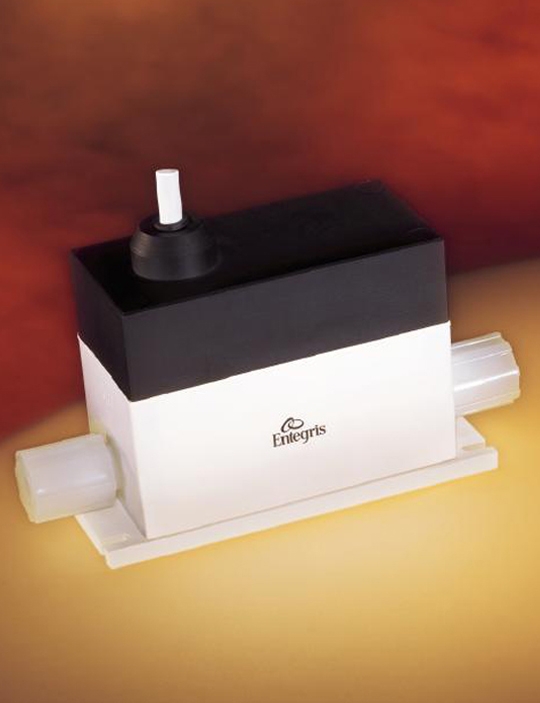

NT® Electronic Flowmeter Model 4400
● Provides simultaneous measurement of outlet pressure and flow rate.
● Ideal for capturing critical diagnostic information for monitoring or controlling process applications such as chemical, DI water and slurry dispense, precision blending and metering and totalized flow for custody transfer.
● No moving parts reduce particle generation potential.
● Nonmetallic sensing technology provides reliable measurement.
● Integral pressure transducer provides additional process information.
● The flow-through design minimizes dead volume, reducing contamination potential.
● PTFE, PFA, CTFE, and Kalrez® wetted surfaces for high-purity applications.
● Industry standard Flaretek® flared port connections reduce entrapment areas, minimize footprint, provide system design flexibility and simplify installation.
● 100% functionally tested prior to shipment. Performance is calibrated for an accuracy of 1% of full scale.
Specifications ：
● Provides simultaneous measurement of outlet pressure and flow rate.
● Ideal for capturing critical diagnostic information for monitoring or controlling process applications such as chemical, DI water and slurry dispense, precision blending and metering and totalized flow for custody transfer.
● No moving parts reduce particle generation potential.
● Nonmetallic sensing technology provides reliable measurement.
● Integral pressure transducer provides additional process information.
● The flow-through design minimizes dead volume, reducing contamination potential.
● PTFE, PFA, CTFE, and Kalrez® wetted surfaces for high-purity applications.
● Industry standard Flaretek® flared port connections reduce entrapment areas, minimize footprint, provide system design flexibility and simplify installation.
● 100% functionally tested prior to shipment. Performance is calibrated for an accuracy of 1% of full scale.
Download ：
| Materials of contruction: | ||
| Wetted parts: | Body: PTFE | |
| Sensor interface: PFA or CTFE | ||
| Primary seal: Kalrez® | ||
| Nonwetted parts: | Polypropylene, polyethylene, PVDF and PVC or FEP-jacketed cable (in addition to materials listed above) | |
| Process temperature: | 50° to 149°F (10° to 65°C) Consult factory for higher temperatures | |
| Electrical input: | 24 VDC (12-28 VDC input voltage) | |
| Electrical output: | Two 4-20 mA electrically isolated outputs, one for flow and one for outlet pressure | |
| Pressure drop: |
3 PSID at nominal flow, 10:1 turndown 12 PSID at nominal flow, 20:1 turndown (Nominal flow = 80% of full scale flow) |
|
| Flow measurement accuracy: | ||
| 10:1 turndown: | 20-100% of range | ±1.0% FS |
| 10-20% of range | ±2.5% FS | |
| 20:1 turndown: | 10-100% of range | ±1.0% FS |
| 5-10% of range | ±2.5% FS | |
| (Accuracy stated as % of full scale, FS, using deionized water at 70°F [23°C] and includes the combined effects of linearity, hysteresis and repeatability) | ||
| Repeatability: | ||
| 10:1 turndown: | 20-100% of range | ±0.5% FS |
| 10-20% of range | ±1.0% FS | |
| 20:1 turndown: | 10-100% of range | ±0.5% FS |
| 5-10% of range | ±1.0% FS | |
| Operating pressure: | 0 to 60 PSIG (0 to 414 kPa) | |
| Over-pressure limit: | 100 PSIG (690 kPa) | |
| Pressure measurement accuracy: | ±1% of full scale | |
| (Includes combined effects of linearity, hysteresis and repeatability) | ||
| Electrical enclosure: | NEMA 5/IP54 | |
