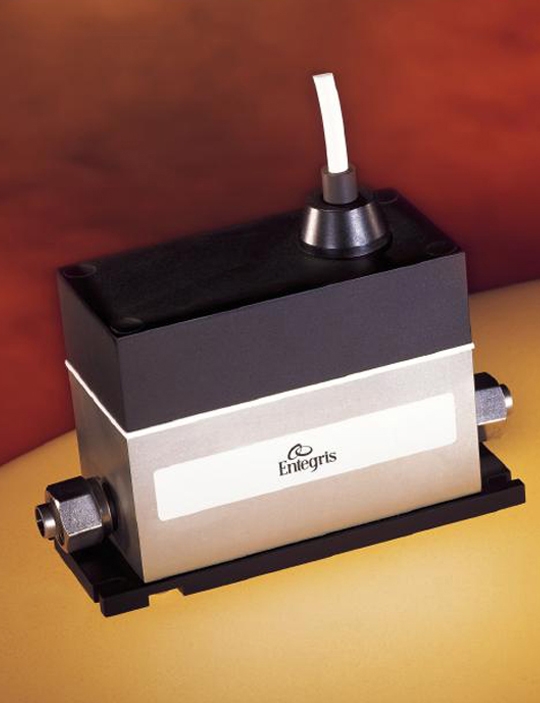

NT®電子流量計 Model 5400
● 提供出口壓力和流速的模擬量測。
● Ideal for capturing critical diagnostic information for monitoring or controlling process applications such as high-purity solvent dispense, precision blending and metering and totalized flow for custody transfer.
● Incorporates two pressure sensors, separated by a venturi style orifice, which provides simultaneous flow and pressure.
● 沒有可移動的零件,可降低粒子產生的潛能。
● 316 stainless steel, PFA, and Kalrez® wetted surfaces for high-purity solvent applications.
● Integral 的壓力轉換器,可提供額外的製程的訊息。
● 流動穿透的設計,可減少死角，降低污染潛能。
● Available in two types of industry standard port connections: tube stub (swage style) type and face seal (metal gasket) type.
● 在運送前,100%功能測試。 校正性能至精確度為1% 滿刻度
規格說明 ：
● 提供出口壓力和流速的模擬量測。
● Ideal for capturing critical diagnostic information for monitoring or controlling process applications such as high-purity solvent dispense, precision blending and metering and totalized flow for custody transfer.
● Incorporates two pressure sensors, separated by a venturi style orifice, which provides simultaneous flow and pressure.
● 沒有可移動的零件,可降低粒子產生的潛能。
● 316 stainless steel, PFA, and Kalrez® wetted surfaces for high-purity solvent applications.
● Integral 的壓力轉換器,可提供額外的製程的訊息。
● 流動穿透的設計,可減少死角，降低污染潛能。
● Available in two types of industry standard port connections: tube stub (swage style) type and face seal (metal gasket) type.
● 在運送前,100%功能測試。 校正性能至精確度為1% 滿刻度
檔案下載 ：
| 製造的材料︰ | ||
| 與化學品相接觸零件: | 本體︰ 316不鏽鋼 | |
| Sensor interface (standard): PFA | ||
| 第一道密封︰ Kalrez® | ||
| 未與化學品相接觸零件: | 陽極處理的鋁，FEP和維頓®(除在上面列舉的材料之外) | |
| 製程溫度: | 50° to 149°F (10° to 65°C) 詢問工廠對於較高溫度 | |
| 輸入電力: | 24 VDC(12-28 VDC輸入電壓) | |
| 輸出電力: | 二個4-20 mA電訊號的分別輸出，一個為流量和一個為出口壓力 | |
| 壓力降: |
10︰1 turndown,在Nominal流量為3 PSID， ，20︰1 turndown 在Nominal流量為12 PSID (Nominal流量= 80%的滿刻度流量) |
|
| 流量量測精確度: | ||
| 10︰1 turndown: | 20-100%的範圍 | ±1.0% FS |
| 10-20%的範圍 | ±2.5% FS | |
| 20:1 turndown: | 10-100%的範圍 | ±1.0% FS |
| 5-10%的範圍 | ±2.5% FS | |
| (精確度以滿刻度的%作說明,FS，使用在70°F [23°C]的去離子水和包括結合線性，磁滯傾向和重複性的影響) | ||
| Repeatability: | ||
| 10︰1 turndown: | 20-100%的範圍 | ±0.5% FS |
| 10-20%的範圍 | ±1.0% FS | |
| 20:1 turndown: | 10-100%的範圍 | ±0.5% FS |
| 5-10%的範圍 | ±1.0% FS | |
| 操作壓力: | 0到60 磅因/平方英寸(0到414 kPa) | |
| 溢壓限制: | 100 PSIG (690 kPa) | |
| 壓力量測精確度: | ±1%滿刻度 | |
| (包括線性,傾向和重複性的效能 組合 | ||
| 內含電力: | NEMA 5/IP54 | |
