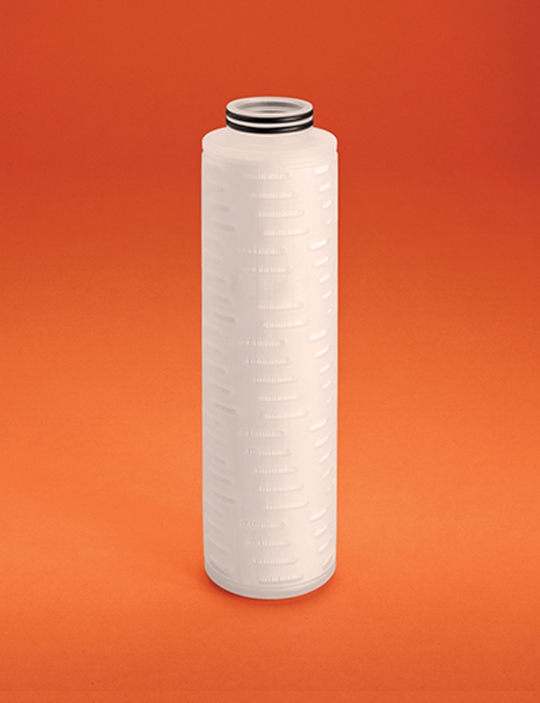

Savana® PTFE Filters
Constructed with PTFE membrane and PP supports for enhanced durability and cleanliness
Hydrophobic Membranes
● Hydrophobic version for air filtration, stripper and IPA or solvent applications in flat panel display or hard disk industries
● Hydrophobic membranes do not require prewetting in solvent-based chemicals
● PTFE pleated membrane with polypropylene support and molded parts provides excellent chemical compatibility
● 0.1, 0.2, 0.5, 1, 3, 10 µm pore ratings available for wide range of applications
Hydrophilic Membranes
● Hydrophilic version for DI water and water-based acid/alkaline solutions for developer, etching and cleaning applications
● Hydrophilic membranes do not require prewetting in water-based chemicals
● PTFE pleated membrane with polypropylene support and molded parts provides excellent chemical compatibility
● 0.1, 0.2, 0.5, 1, 3, 10 µm pore ratings available for wide range of applications
檔案下載：
規格說明：
Constructed with PTFE membrane and PP supports for enhanced durability and cleanliness
Hydrophobic Membranes
● Hydrophobic version for air filtration, stripper and IPA or solvent applications in flat panel display or hard disk industries
● Hydrophobic membranes do not require prewetting in solvent-based chemicals
● PTFE pleated membrane with polypropylene support and molded parts provides excellent chemical compatibility
● 0.1, 0.2, 0.5, 1, 3, 10 µm pore ratings available for wide range of applications
Hydrophilic Membranes
● Hydrophilic version for DI water and water-based acid/alkaline solutions for developer, etching and cleaning applications
● Hydrophilic membranes do not require prewetting in water-based chemicals
● PTFE pleated membrane with polypropylene support and molded parts provides excellent chemical compatibility
● 0.1, 0.2, 0.5, 1, 3, 10 µm pore ratings available for wide range of applications
檔案下載：
規格說明：
| Materials: |
Membrane: Hydrophobic / Hydrophilic PTFE Support: Polypropylene Sleeve/caps/core: Polypropylene O-ring: EPDM, FKM, E-EKM Gasket (Code-F): EPFM, FKM |
| Retention rating: |
0.1, 0.2, 0.5, 1, 3, 10 µm |
| Maximum operating conditions: |
Maximum forward differential pressure: 0.40 MPa (4.0 bar, 58 psi) @ 25°C (77°F) Maximum reverse differential pressure: 0.30 MPa (3.0 bar, 44 psi) @ 25°C (77°F) Maximum operating temperature: 90°C (for 70 mm diameter cartridge, in water) Maximum operating temperature: 80°C (for 83 mm diameter cartridge, in water) |
