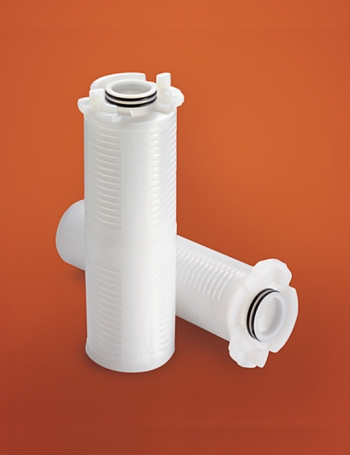

Fluorogard® ATE UCM 20 nm Cartridge Filters- Ultra Clean
High-volume organic solvent filter
● High-retention rating at 20 nm improves single-pass retention efficiency improves chemical cleanliness
● Low particle shedding improves chemical cleanliness
● Ultra-low extractables level improves chemical cleanliness
● Higher surface area using the ATE M pleat structure improves filter lifetime and lowers pressure drop (less stress on other components such as pumps)
● All-fluoropolymer construction provides the best chemical compatibility in a multitude of applications
檔案下載：
規格說明：
High-volume organic solvent filter
● High-retention rating at 20 nm improves single-pass retention efficiency improves chemical cleanliness
● Low particle shedding improves chemical cleanliness
● Ultra-low extractables level improves chemical cleanliness
● Higher surface area using the ATE M pleat structure improves filter lifetime and lowers pressure drop (less stress on other components such as pumps)
● All-fluoropolymer construction provides the best chemical compatibility in a multitude of applications
檔案下載：
規格說明：
| Materials: |
Membrane: PTFE Supports, core, sleeve: PFA Cartridge o-rings: Teflon® encapsulated Viton® Extreme™ ETP (E-ETP) |
| Retention ratings: |
20 nm |
| Membrane surface area: |
2.2 m2 |
| Maximum operating conditions: |
Maximum forward differential pressure: 0.44 MPa (4.4 bar; 64 PSi) @25°C, 0.05 MPa (0.5 bar; 7.5 PSi) @ 180°C Maximum reverse differential pressure: 0.35 MPa (0.5 bar; 7.5 PSi) @ 180°C Maximum operating temperature: 180°C (at the above conditions) |
| Particle cleanliness: |
<15 particles/10 mL >/= 0.2 µm after a 5-minute flush at 5 L/min |
| Metallic extractable levels: |
<10 µg/10" element (100% tested) |
