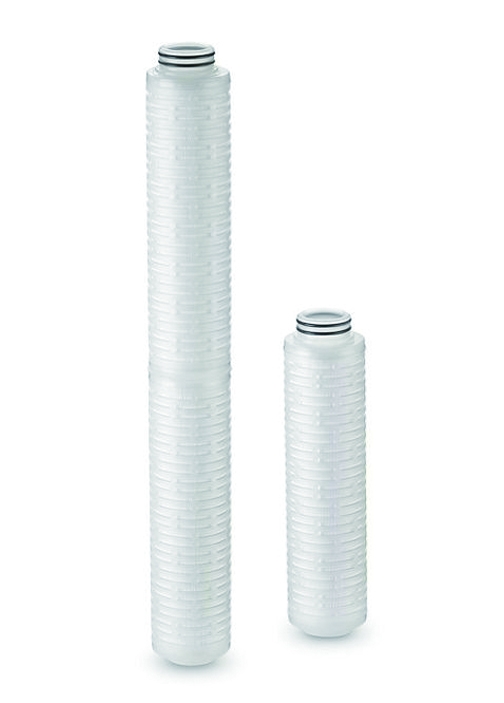

Trinzik™ PEH Aqueous Process Filter
Enhance yield in high-volume process applications using our high-flow aqueous process filters.
● High-flow filters enable the fastest clean up of processes in data storage/hard disk drive and flat panel display applications
● High-porosity, hydrophilic PTFE membrane enables high flow rate and reduces operational costs
● Small pore size membrane design enables advanced particle removal and increases yield
● Polypropylene (PP) construction lowers extractables and ensures clean filtration operations
Enhance yield in high-volume process applications using our high-flow aqueous process filters.
● High-flow filters enable the fastest clean up of processes in data storage/hard disk drive and flat panel display applications
● High-porosity, hydrophilic PTFE membrane enables high flow rate and reduces operational costs
● Small pore size membrane design enables advanced particle removal and increases yield
● Polypropylene (PP) construction lowers extractables and ensures clean filtration operations
Download：
Specifications：
| Materials of construction: |
Membrane: Hydrophilic PTFE Supports, core, sleeve: Polypropylene (PP) O-ring: ncapsulated FKM (E-FKM), EPDM, FKM |
| Retention rating: |
30 nm, 0.05 µm, 0.1 µm |
| Cartridge connections: |
Code 0 (222 Flat), Code 5 (222 Fin), Code 6 (226 Flat), Code 7 (226 Fin) |
| Maximum operating conditions: |
Maximum forward differential pressure: 5.5 bar (80 psid) @ 25°C (77°F) 1.7 bar (25 psid) @ 80°C (176°F) Maximum reverse differential pressure: 3.4 bar (50 psid) @ 25°C (77°F) Maximum temperature: 80°C (176°F) |
| Dimensions: |
Length: 10", 20", 30" Diameter: 69 mm (2.7") |
