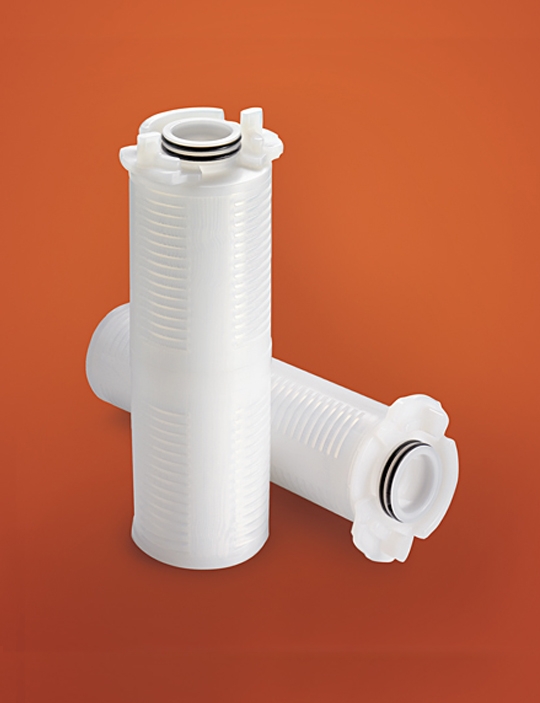

Guardian™ AT and ATX Cartridge Filters
Hydrophobic membrane for ultra-high purity chemicals
● Ideal for higher temperature applications
● All-fluoropolymer materials of construction provide a broad range of chemical compatibility. Suitable for a variety of chemicals and solvents
● Highly retentive hydrophobic PTFE membrane made of Telfon® fluoropolymer resin provides excellent removal of small, critical-size particles to ensure low particle counts in chemical delivery systems
● ATX: Large membrane surface area to deliver high flow rates at minimal pressure drop
● For Industrial Use Only. Not for use in food, drug, cosmetic or medical devices manufacturing, processing or packaging operations
檔案下載：
規格說明：
Guardian™ AT Cartridge Filters
Guardian™ ATX Cartridge Filters
Hydrophobic membrane for ultra-high purity chemicals
● Ideal for higher temperature applications
● All-fluoropolymer materials of construction provide a broad range of chemical compatibility. Suitable for a variety of chemicals and solvents
● Highly retentive hydrophobic PTFE membrane made of Telfon® fluoropolymer resin provides excellent removal of small, critical-size particles to ensure low particle counts in chemical delivery systems
● ATX: Large membrane surface area to deliver high flow rates at minimal pressure drop
● For Industrial Use Only. Not for use in food, drug, cosmetic or medical devices manufacturing, processing or packaging operations
檔案下載：
規格說明：
Guardian™ AT Cartridge Filters
| Materials: |
Membrane: Hydrophobic PTFE Supports: PFA supports, core sleeve and end caps O-rings: Teflon® fluoropolymer encapsulated Viton® fluoroelastomer O-ring (TEV), Chemraz® perfluoroelastomer, or Kalrez® perfluoroelastomer |
| Connections: |
Code 0 (2-222) |
| Membrane area: |
9000 cm2 (9.69 ft.2 ) |
| Maximum operating conditions: |
Maximum forward differential pressure: 0.45 MPa (4.5 bar, 64 PSID) at 25°C Maximum reverse differential pressure: 0.35 MPa (3.5 bar, 50 PSID) at 25°C Maximum operating temperature: 150°C (302°F) at 0.5 bar (7.3 PSI) |
| Cleanliness: |
Filter contributes <2 particles/mL >=2 μm after five-minute flush at 5 L/min. |
Guardian™ ATX Cartridge Filters
| Materials: |
Membrane: Hydrophobic PTFE Supports: PFA supports, core sleeve and end caps O-rings: Teflon® fluoropolymer encapsulated Viton® fluoroelastomer O-ring (TEV), Chemraz® perfluoroelastomer, or Kalrez® perfluoroelastomer |
| Connections: |
Code 0 (2-222) |
| Membrane area: |
20”: 26000 cm2 (28 ft.2) 10”: 13000 cm2 (14 ft.2) 4”: 5000 cm2 (5.4 ft.2) |
| Maximum operating conditions: |
Maximum forward differential pressure: 0.45 MPa (4.5 bar, 64 PSID) at 25°C Maximum reverse differential pressure: 0.35 MPa (3.5 bar, 50 PSID) at 25°C Maximum operating temperature: 150°C (302° F) at 0.5 bar (7.3 PSI) |
| Cleanliness: |
Filter contributes <2 particles/mL >=2 μm after five-minute flush at 5 L/min. |
