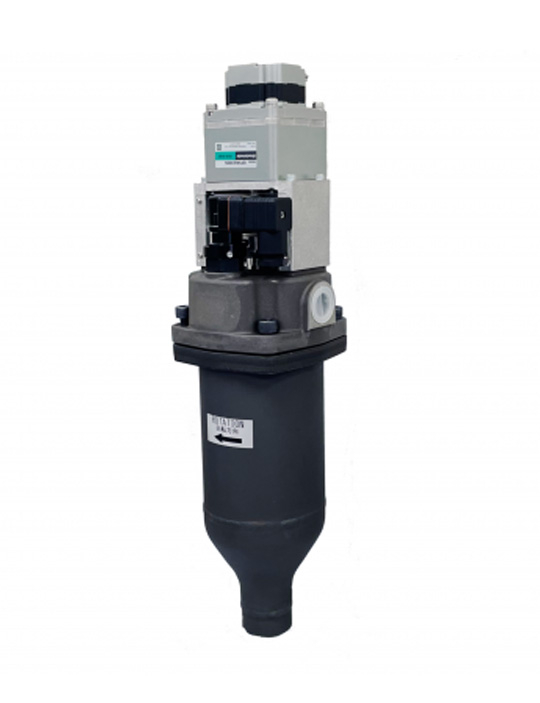

ADF
Application
Application
Install it in the coolant circuit of the machine tool.
Dust is collected regardless of the mass of dust and the flow rate of coolant.
Features
● Maintenance-free by system construction.
● Automatic element cleaning by electric motor.
● Certain & stable physical filtration by wedge wire element.
檔案下載：
規格說明：
| Item | Standard Spec. | Option |
| Corresponding fluid | Mineral oil, Oil-based coolant | Water-soluble coolant, Water glycol oil |
| Maximum working pressure | 3.5MPa | 3.0MPa (Installation drain valve) |
| Connection | Rc threaded type | - |
| Drive of motor | n/a |
1φ 100V~200V 1φ/3φ 200V~240V |
| Drain valve | n/a |
AC 100V 50/ 60Hz, AC 110V 60Hz AC 200V 50/ 60Hz, AC 220V 60Hz DC 24V |
| Indicator | n/a | Select from visual type, electric contact type, and electric contact type (micro capacity) |
