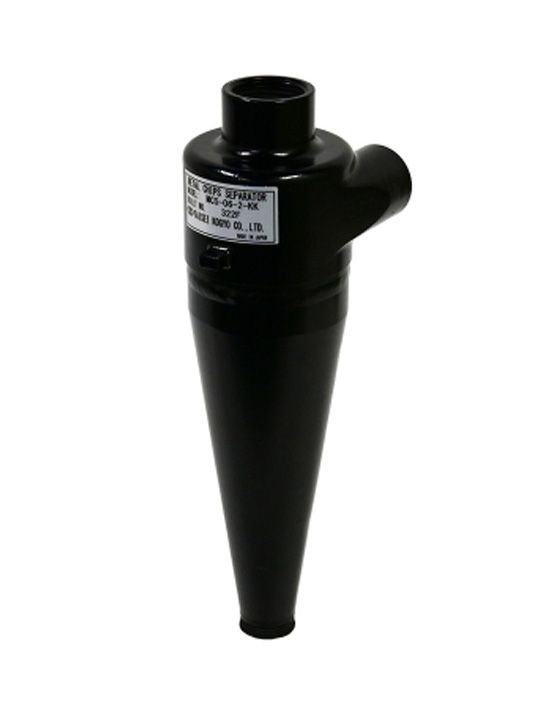

MCS
Application
Application
Install it in the coolant circuit of the machine tool.
Features
● For a low pressure drop, It restrains a temperature rise of coolant.
● For high filtration precision, It maintains the processing precision of the machine tool.
● Enhance durability, and prolong service.
檔案下載：
規格說明：
| Item | Standard Spec. | Option |
| Corresponding fluid | Water-soluble coolant | |
| Maximum working pressure | 1.0MPa | 0.4MPa (Installation sludge tank) |
| Working temp range | 0～60℃ | |
| Working kinematic viscosity range | ～2.5mm2/s | |
| Working flow rate range |
MCS-06-1 :30~50L/min MCS-06-2 :30~60L/min |
|
| Drain valve | n/a | Installation optional |
