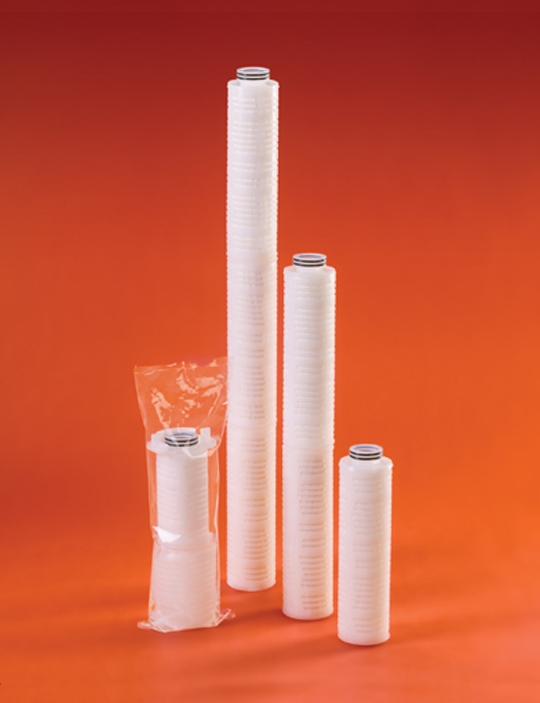

Savana® AT Cartridge Filters
The new standard for all-fluoropolymer filters for aggressive chemicals and moderate temperature applications
● All-fluoropolymer construction provides excellent chemical compatibility in a broad range of applications
● Optimized surface area using pleated structure provides high flow, long lifetime and low pressure drop
● Prewet version requires no solvent for prewetting or flusing - quicker/easier installation
Download：
Specifications：
The new standard for all-fluoropolymer filters for aggressive chemicals and moderate temperature applications
● All-fluoropolymer construction provides excellent chemical compatibility in a broad range of applications
● Optimized surface area using pleated structure provides high flow, long lifetime and low pressure drop
● Prewet version requires no solvent for prewetting or flusing - quicker/easier installation
Download：
Specifications：
| Materials: |
Membrane: PTFE Support: PFA O-ring: Encapsulated FKM (E-FKM) |
| Retention rating: |
0.1 µm - 0.2 µm |
| Shelf life (prewet option): |
6 months |
| Membrane area: |
10" 0.8 m2 20" 1.6 m2 30" 2.4 m2 |
| Maximum operating conditions: |
Maximum forward differential pressure: 0.20 MPa (2.0 bar, 29 PSID) @ 120ºC (248ºF), 0.51 MPa (5.1 bar, 74 PSID) @ 25ºC (77ºF) Maximum reverse differntial pressure: 0.35 MPa (2.0 bar; 50 PSID) @ 25ºC (77ºF) Maximum operating temperature 120ºC (248ºF) at the above conditions |
