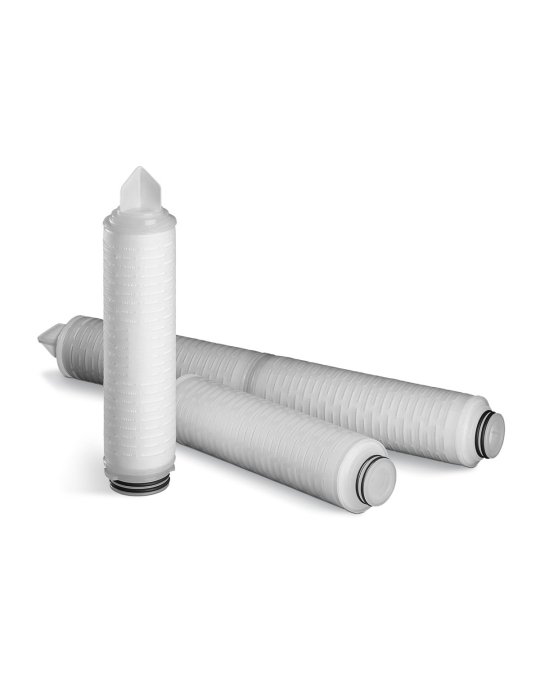

ProcessGard® PS Plus Filters
Ideal for filtering weak acids, bases, and ultrapure DI water used for cleaning processes in the microelectronics industry.
●Asymmetric polyethersulfone (PES) media structure reduces pressure drop while improving particle retention
●Hyrophilic PES media eliminates prewet treatment, reduces filter changeout, and increases equipment uptime
●Polypropylene (PP) supports, core, and cage provide excellent chemical compatibility for use in a wide range of applications
Ideal for filtering weak acids, bases, and ultrapure DI water used for cleaning processes in the microelectronics industry.
●Asymmetric polyethersulfone (PES) media structure reduces pressure drop while improving particle retention
●Hyrophilic PES media eliminates prewet treatment, reduces filter changeout, and increases equipment uptime
●Polypropylene (PP) supports, core, and cage provide excellent chemical compatibility for use in a wide range of applications
檔案下載：
規格說明：
| Materials of construction | Media | Hydrophilic polyethersulfone |
| Supports, core, sleeve, end caps | Polypropylene | |
| O-ring (Code-0, -5, -6: AS568-222; Code-7: AS568-226) | EPDM, FKM, E-FKM | |
| Gasket (Code F) | EPDM, FKM | |
| Retention rating | 0.05, 0.1, 0.2, 0.45, 1.0 µm | |
|
Maximum operating conditions |
Maximum forward differential pressure | |
| 0.4 MPa (4.0 bar, 58 psid) @ 25°C (77°F) | ||
| Maximum reverse differential pressure | ||
| 0.25 MPa (2.5 bar, 36 psid) @ 25°C (77°F) | ||
| Maximum operating temperature | ||
| 90ºC (194°F) | ||
