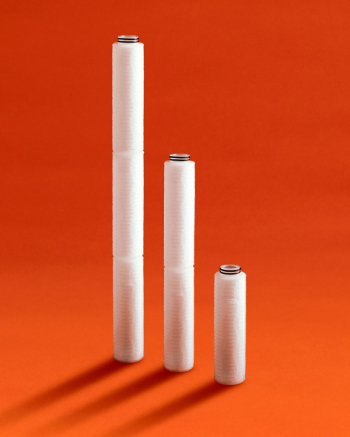

Fluorogard® PE Bulk Chemical Filters
Clean, all-purpose bulk chemical filter with strong retention and flow rate performance in 65 – 180 nm technology nodes.
Clean, all-purpose bulk chemical filter with strong retention and flow rate performance in 65 – 180 nm technology nodes.
檔案下載：
規格說明：
| Materials: | Membrane | Hydrophobic PTFE |
| Supports, core, sleeve and end caps | High-density Polyethylene (HDPE) | |
| O-ring | E-FKM | |
| Connection: | Code 0 (AS568-222 o-rings) | |
| Retention rating: | 30 nm, 0.05, 0.1, 0.2, 0.5, 1.0, 3.0, and 10.0 µm | |
| Maximum operating conditions: | Maximum forward differential pressure | 0.34 MPa (49 psi) @ 25°C (77°F) |
| Maximum operating pressure | 70°C (158°F) |
