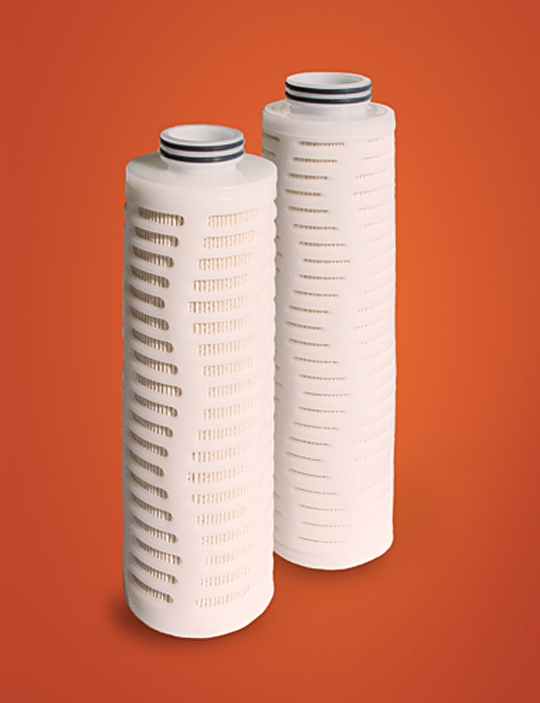

Panelgard® PSF, PSX and PS40 Cartridge Filters
Hydrophilic polysulfone membrane for point-of-use filtration in flat panel display and semiconductor manufacturing applications
● Hydrophilic, polysulfone membrane
● Asymmetric membrane structure
● All polypropylene construction
檔案下載：
規格說明：
Panelgard® PSF Cartridge Filters
Panelgard® PSX Cartridge Filters
Panelgard® PS-40 Cartridge Filters
Hydrophilic polysulfone membrane for point-of-use filtration in flat panel display and semiconductor manufacturing applications
● Hydrophilic, polysulfone membrane
● Asymmetric membrane structure
● All polypropylene construction
檔案下載：
規格說明：
Panelgard® PSF Cartridge Filters
| Materials: |
Membrane: Hydrophilic polysulfone Supports, core, cage, and endcaps: Polypropylene O-rings: EP, Viton® fluoroelastomer, or Teflon® fluoropolymer encapsulated Viton fluoroelastomer O-ring (TEV) |
| Connections: |
Code 0 (2-222), or Code F (flat gasket) |
| Membrane area: |
10”: 7,000 cm2 (7.5 ft2) |
| Particle retention: |
0.1 μm, 0.2 μmm, 0.45 μm retention ratings. Greater than 99.999% particle retention at stated retention rating |
| Maximum operating conditions: |
Maximum forward differential pressure: 0.35 MPa (3.5 bar, 50 PSID) at 20° C; 0.14 MPa (1.4 bar, 20 PSID) at 90° C Maximum reverse differential pressure: 0.24 MPa (2.4 bar, 35 PSID) at 20° C Maximum operating temperature: 90° C |
Panelgard® PSX Cartridge Filters
| Materials: |
Membrane: Hydrophilic polysulfone Supports, core, cage, and endcaps: Polypropylene O-rings: Teflon® fluoropolymer encapsulated Viton fluoroelastomer O-ring (TEV) |
| Connections: |
Code 0 (2-222), Code 6 (2-226) |
| Membrane area: |
10”: 10,000 cm2 (10.8 ft2) |
| Particle retention: |
0.1 μm, 0.2 μm, 0.45 μm retention ratings Greater than 99.999% particle retention at stated retention rating |
| Maximum operating conditions: |
Maximum forward differential pressure: 0.35 MPa (3.5 bar, 50 PSID) at 20° C; 0.14 MPa (1.4 bar, 20 PSID) at 90°C Maximum reverse differential pressure: 0.24 MPa (2.4 bar, 35 PSID) at 20°C Maximum operating temperature: 90°C |
Panelgard® PS-40 Cartridge Filters
| Materials: |
Membrane: Hydrophilic polysulfone Supports: High density polyethylene O-rings: EPDM (AS568A-118) |
| Connections: |
AS568A-118 |
| Membrane area: |
3,200 cm2 (3.5 ft2) |
| Particle retention: |
0.1 μm, 0.2 μmm, 0.45 μm retention ratings Greater than 99.999% particle retention at stated retention rating |
| Maximum operating conditions: |
Maximum forward differential pressure: 0.27 MPa (2.7 bar, 39 PSID) at 25°C Maximum operating temperature: 60°C |
